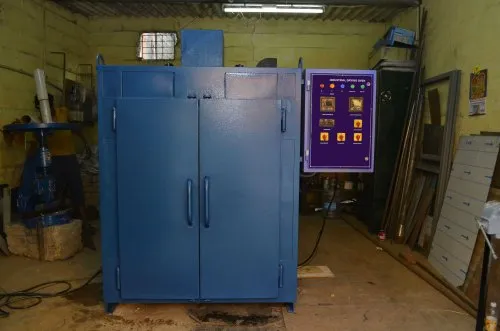

Industrial Drying Oven Multiusage

Capacity 100 Kg Material Mild Steel Automation Grade Automatic Usage/Application Used for industrial Applications Drying/Curing/ Backing etc. Oven Type Cabinet Ovens Temperature 100-200 deg. Celsius Max Temperature 50 deg C to 300 deg. C +/- 3 deg C Air-Flow Direction Horizontal Air Flow Door Type Double Door Display Type Digital Country of Origin Made in India Triple walled construction on sturdy angle iron frame with both inner and outer walls of thick PCRC sheet, which is duly decreased, and primer painted to prevent rusting.The inner wall is painted with aluminium paint to withstand long duration heating cycles normallyrequired in Industrial applications.The 100mm gap between the walls is filled with special grade glass wool for proper insulation and to avoid heat losses thereby saving energy.Air is constantly circulated by heavy-duty blower to maintain the inside temperature constant with a minimum temperature gradient throughout the working chamber.Heating is done by constantly circulating the air with heavy duty blower which are interlocked with Strip type heating elements placed equidistantly on the inner chamber.A ventilator with adjustable opening on the top facilities flowing away of any fumes or vapors produced during the process.A power selection switch which permits selection of working temperature inside the chamber.Temperature from 50 deg C to 300 deg. C /- 3 deg C is controlled by Automatic Digital temperature controller-cum-Indicator.Air ventilators are provided at top as well as the bottom to ventilate gases and fumes if any.The equipment is provided with a panel which is having Mains on/off switch 1 No., heater on/off switch 1no., mains indicating lamps 3 Nos., heater indicating lamps 1 no., motor starter 1 no., (push to on/push to off) ammeters 3 nos., volt meter with selector switch 1 no., heater selector switch 1 no., etc., fitted rights side of the oven itself. Yes, I am interested!
