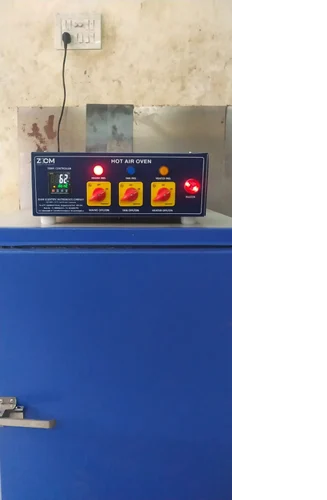

Hot Air Oven

Temperature Range 5 deg. C above ambient to 250 deg. C with a sensitivity of +/- 2 deg. C Model Name/Number ZSI-2160 Heating Media High-grade Nichrome wire Insulation Special grade glass wool No. Of Shelves 1 No Operating Current 1.2 KW Brand Zoom Scientific Tray Stainless Steel Inner Size (W X H X D) 350x350x 350mm Power Supply 220 Volts 1 phase, 50 Hz, AC Supply Double walled construction, Inner chamber made of stainless steel.Outer chamber is made of mild steel attractively finished in powder coating for durable operation.Inner chamber is fabricated with ribs to adjust trays to any convenient height.Oven supplied with removable perforated trays 2 or 3 depending on sizes.Tray made of Stainless Steel.It Insulated by 2.5” gap between the walls is filed with special grade glass wool for proper insulation and to avoid heat losses.It is double walled inner Stainless Steel and outer chamber mild steel with powder coated paint fitte with heavy stainless steel hinges with spring loaded lock.Heating elements are made of high-grade Nichrome wire, which are put inside the porcelain beads and placed at the bottom for uniform temperature all over the space.The temperature is controlled by a capillary thermostat variable from 5 deg. C above ambient to 250deg. C with a sensitivity of +/- 2 deg. CAir ventilators are provided at top as well as at the bottom to ventilate gases and fumes if any.The equipment is provided with a panel which is just below the door having a capillary type Thermostat,thermostat control known knob, On/Off switch, two pilot lamps and provision for fixing the Timer.
