Wren Engineering Private Limited
We, "Wren Engineering Private Limited" are a "Manufacturer And Importer" of high-quality Press Brake Machine, Hydraulic Rock Breaker, Air Compressors, Milling Machine, Hydraulic Shearing Machines, Machine Tool Accessories, Radial Drill Machines, Refrigerator Air Dryers etc. Our offered range consists of best grade products. In addition to this, our products are acknowledged for their points like easy to use, high quality, and long life.
Our mentor "Mr. Feroz Ahmad" is the guiding force behind our rapid growth. He holds the deep expertise that encourages us to bring out a perfect innovation in our offered range.
Preview

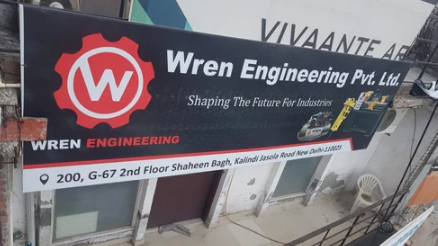

WEPL, G67, 200, 2nd Floor,,Kalindi Jasola, Main Road, Okhla, Jasola Vihar,,
New Delhi - 110025
New Delhi - 110025
Contact Details

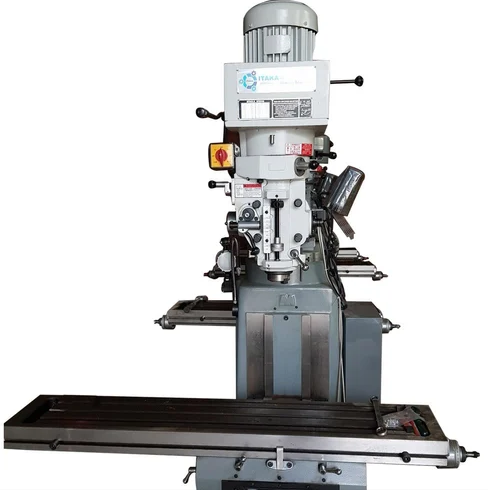

Wrenmill Ik Taiwan Verticle Ram Turret Milling Machine Square Head Side Brake
Minimum Order Quantity 1 Piece
Material Cast Iron
Usage/Application Milling Boring Facing Metal Surface Finishing
Spindle Taper ISO 30
Main Motor 3 Hp
Speed 3900 rpm
Quill Travel 127 mm
Vertical Travel 400 mm
Gross Weight 1280 kg
Distance From Spindle Nose To Table Surface Max. 500 mm
Milling Head (Belt Driven) 16 Steps
Quill Dia. 85 mm
Quill Swivel 45 Degree
T Slot (Width x No.x Pitch) 16 x 3 x 63
Over Ram Travel 500 mm
Spindle Feed 0.04/0.08/0.15 mm/rev
Spindle Centerline to Column 517
Over Ram Swivel 360 Degree
Auto Quill Feeds 0.40/0.08/0.15 mm/rev
Packing Dimensions 1660 x 1800 x 1910 mm
Country of Origin Made in India
New Delhi - Delhi
