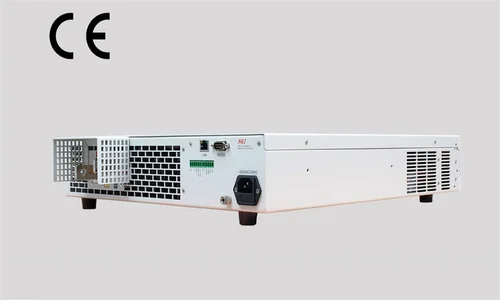

N62400 Series Single-Channel DC Electronic Load for Fuel Cell Test
Model Name/Number N62400
Min. operating voltage 0.2V
loading current 1200 A
Operation mode CC,CV,CP,CR
Voltage range 0-40V
Current range 0-1200A
Power range 0-6000W
●Power range: 0-6000W
●Voltage range: 0-40V
●Current range: 0-1200A
●Min. operating voltage as low as 0.2V when loading current 1200A
●Operation mode: CC, CV, CP, CR
●Stable and reliable CR/CP function supported by hardware
●Editable rise and fall slew rate
●Supporting LAN/RS232/CAN communication
●Supporting charge & discharge test, OCP test
●Programmable sequence test function(SEQ), up to 100 groups sequence files, up to 50 steps per file
●Analog programming interface(APG), current monitoring interface, remote/local trigger function
●Short-circuit simulation
●Editable Von/Voff function
●Built-in ESR test function (Optional)
