Tool Pre Setter
Usage/Application Industrial
Brand Trimos
Weight 150 Kg
X Axis Dia 310 mm
Z Axis Height 400 mm
Ground Area Covered 960mm X 600mm X 900mm Height
Spindle Holding System Standard Holding for BT 50

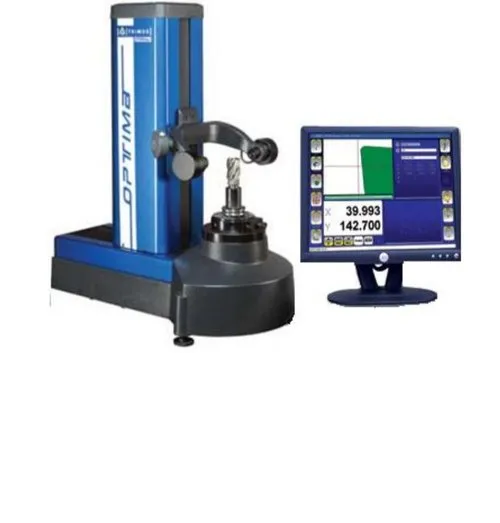

Trimos cnc tool presetter model-500 with cimos camera
Authorized dealer for isomet metrology
Trimos cnc tool presetter model- 500 with cimos camera measuring capacity 400x300 dia, electronic system embedded. Accuracy 3 micron built in software and c. P. U. Std. Holding bt-50/40.
Trimos optima tool presetter 500 technical specifications basic machine measuring range z axis -height -400mm x axis -dia -310mm least count 0. 01mm (slides-built in lm guides with ring drive nut for transmission spindle holding system -standard holding for bt 50 -rotation on precision bearings -locking -manual ground area covered -960mmx600mmx900mm height weight -150 kgs.
Reducing sleeves bt 40 & 50 standard accessories master mandle dia 50
