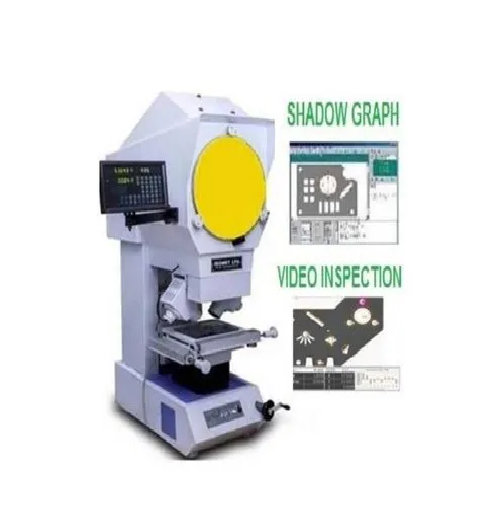

Profile Projector
Brand ISOMET
Model Name/Number PROFILE PROJECTOR MODEL-500 BENCH
Size 400x320mm
Data processing Software Yes
Least Count 1 Micron
Edge Deduction Automatic Report Yes
Profile projector model-500 bench
Authorized Dealer for Isomet Metrology
Isomet fully automated profile projector model-400 bench with report generation standard room model, display of image while measurement proceed with data processor up-loaded on your p. C. Technical parameters (specification)
light path -vertical light path system. screen -400mm dia with 360 numerical indications and dial vernier least count 2 minutes. magnification standard -built in 10x telecentric imported optics high resolution contour accuracy ±0. 1% or less (optional upgradeable 20x,25x,50x,100x) -price on request. Micro work stage on high precision linear bearing. i) table top dimension -400x320mm glass size-280x180mm travel-350x220 least count . 0. 001mim dimension -485x950x1500mm height maximum component dia -135mm accuracy ±3 micron
isomet report generating cad transfer measuring profile projector-500 bench with video measuring attachment. Table size-500x320, digital least count 1 micron data processing software edge deduction automatic report.
2 axis digital read out system counter with rs 232 port & 2 axis linear scales reading with smart dro complete scales reading with smart dro complete.
Additional Information:
Delivery Time: 30 Days
