3d Coordinate Measuring Machine

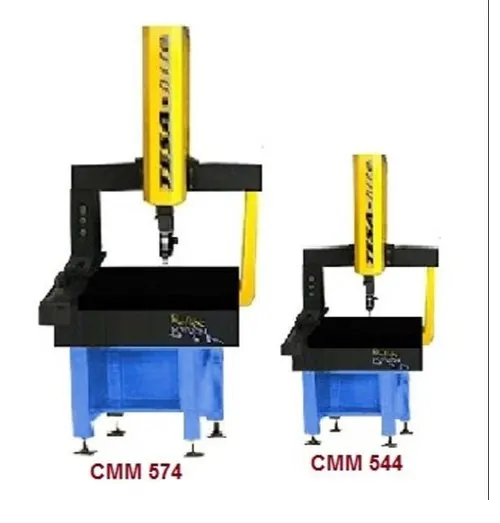

Model Name/Number 3D CMM TESA MODEL-544 Probe Type Renishaw TP2 Probe or Similar Measuring Range 500x400x400mm, Different Sizes are available Weight 300 Kg Base Type Granite Material with M8/M10 Tapped inserts Temperature Range 20 Degree C Brand Tesa Automation Grade Semi-Automatic Evaluation Comprising of CMM Controller Drives Card,Counter card & associated electronics built in CPU Windows Type Bridge Type Co-ordinate Measuring Machine Reflex Tesa Model-544/Brown & Sharp ISO MET METROLOGY AUTHORIZED DEALER We provide Annual Maintenance Services High precision cmm floating on air bearing with micro hand wheel forinspection of projected geometry, cylinder, circles, line, angle withrenishaw touch trigger probe automatic report generation fine touchwheel measurement with cad transfer. Specifications:measuring rangex-axis mm 500y-axis mm 400z-axis mm 400resolution μm 0. 001 mmaccuracy, mpee μm below 3. 5 + l/300generalwork piece weight kg 300mmclearance under bridge mm 400 mmguide system air bearing high precision moving on all axiswith 8 kgs. Air adjustable pre-loaded. Work table granite material with m8/m10 tapped insertsmode of operation manual report automatic and re-measure automaticrenishaw probe tp8 built in3d cmm software geo packwith cpu and cmm controller. Including:mechanical structureconsisting of granite guide ways on all axis with fine hand wheelscomplete working & preloaded air bearings. Counter balanced z axis. Backlash free driving system.
