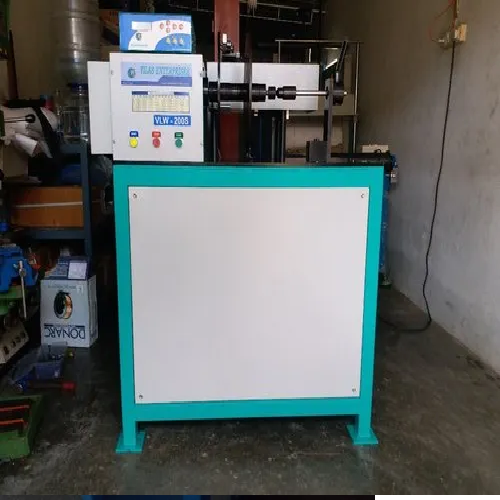

Transformer Layer Winding Machine
Our product range includes a wide range of Toroidal Winding Machine, Transformer Layer Winding Machine, Toroidal Core Winding Machine, Coil Winding Machine VLW-200, CNC Transformer Winding Machine and Coil Winding Machine VLW-100D.
Type of Machine Transformer Coil Winding Machine
Coil Diameter 150 mm
Quantity Per Roll 15 kg
Type VLW- 200S
Grade Aluminium & Copper
Wire Material Copper/Copper Alloy
Thickness 1.2 mm
Usage/Application CO2 Layer Winding Machine
Layer winding machine Single Spindle Side Loading Semi-Automatic Machine with Tailstock and Tensioner
Winding width : 400mm
Coil swing dia : 300 mm
Wire dia : 40 TO 10 SWG
Total turns : up to – 99,999
Traverse : hybrid stepper motor
Taps : 8
Turns accuracy : 0.1 turn
Winding Speed : 600 RPM (Max)
Supply : 230 Volts
Power : 750W
Memory : 499 Programs
Display : 16 X 2 Lines LCD
Memory back up : in built
Wire cut indication : Online
Layer stop : Online
Winding Pitch Edit : Online
Spindle Lock : Online
Jog Speed : Online
Production counting : Online
Password : Programmable
Foot Switch : Optional
Additional Information:
Production Capacity: 1000 RPM/hr.
