3935 Microcontroller Digital Melting Point Apparatus
Temperature Range 300 Degree C
Temperature Sensor PT 100
Temperature Resolution 0.1 Degree C
Capillary Glass Tubes 75 mm
Key Board 20 keys Soft Touch Membrane Type
Storage Setup Data 100 Setups
Results 300 Last Results
Display 240 x 128 pixels Resolution 7" Graphical LCD Display
Clock In-built Clock with Date & Time Display
Power 230 V +- 10 % AC, 50 Hz
Dimensions 375 x 300 x 330 mm
Weight 12 kg

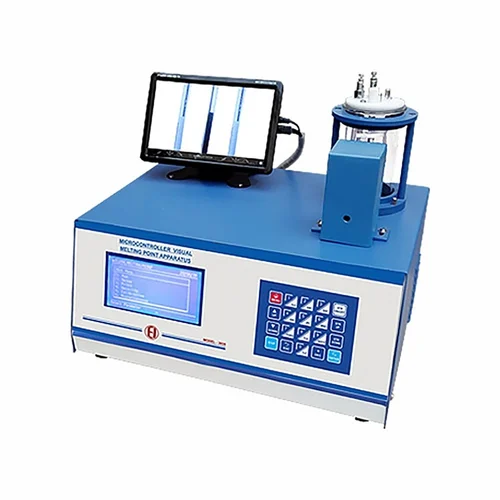

3935 Microcontroller Visual Melting Point Apparatus
FEATURES
Graphical LCD display, colored TFT screen with high resolution Camera
Extremely Useful for Pharmaceutical Industry
Highly Accurate and Easy to Operate
Digital Resolution for Temperature 0.1°C
Silicon Oil-Bath and In-built Magnetic Stirrer for Uniform Heating
3 Tire Password Protection Facility (Admin, Supervisor and User)
Online/Offline Printing facility with real time and date
User selectable Ramp Rate and Plateau Rate
Facility for unknown/new product evaluation by Rapid Melt Method
Up to 5 Point Temperature Calibration using Point to Point or Polynomial Method
Validation Available as per Pharma Compliance
Model-3935-y2019Image-zoom
Microcontroller Visual Melting Point Apparatus Model 3935 with Graphical LCD display and colored TFT screen and high resolution camera. It is designed for accurate measurement of melting points and for checking the melting range of the solid samples. The apparatus consists of a silicon oil bath of about 200 ml capacity, covered with a Teflon cover with 5 holes, fitted with a special type of oil immersion heater and having three holes for holding the capillaries, one for boiling point tube and one for the thermometer.
The plateau temperature and the heating ramp rates are fully programmable using ‘Plateau’/ ‘Ramp’. The plateau temperature allows the user to set a temperature to few degrees below the expected melting point temperature. Auto melting point apparatus will then heat to the programmed plateau temperature very rapidly. Once plateau temperature is reached the instrument will heat slowly from the plateau temperature until the powder melts on programmed ramp rate.
