Uinks India
Established in the year 2020 at Ghaziabad, Uttar Pradesh We “Uinks India” are a Sole Proprietorship based firm, engaged as the foremost Manufacturer, Wholesaler, Service Provider of Pad Printing Machine, Cliche Plate, Pad Printing Ink and many more. Offering you a complete choice of products which include 404 Silicone Printing Pad, 303 Silicone Printing Pad, 01 Silicone Printing Pad and L Silicone Printing Pad. Leading Manufacturer of Printing Pads, UI100D Double Color Pad Printing Machine, Pad Printer and Silicone Pads from Noida. Providing you the best range of Pad Printing Pad, UI100S Pad Printing Machine and Printing Pads with effective & timely delivery.
Preview
First Floor, Sector-10,,C-152, Noida, Gautam Buddha Nagar-,
Noida - 201301
Noida - 201301
Contact Details

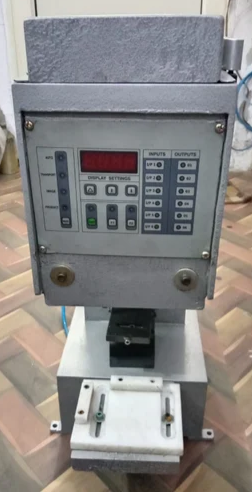

UI100S Pad Printing Machine
Printing Speed 1800 Impressions/Hour
Automation Grade Semi-Automatic
Voltage 220 V
Plate Size 210x100x10mm
Phase Three Phase
Weight 90kg
Cliche Size 100x210x10 mm
Current Consumption 15 W
Tampon Stoke Max. 90 mm
Control Voltage 24 V
Dimension (LxHxW) 600x650x350 mm
Control Electro-Pneumatic
Working Pressure 6 Bar
Frequency 50 Hz
Brand Uinks India
Drive Pneumatic
Printing Image Max 90mm
Height Of Object Max. 150 mm
Model Number UI100S
Printing Capacity Max. 2000 Stroke/Hr
Air Consummation Max 0.33 m3/hr
Nominal Width 5 mm
Force Of Pressure Max 450 N
It uses a spatula and floods the printing plate with ink. The rotary gravure machine is similar to the open inkwell and well-suited for printing 360 º around a workpiece. The closed ink-cup technology uses the general technique of storing print ink in an inverted cup.
Noida - Uttar Pradesh
