Established in the year 2020 at Ghaziabad, Uttar Pradesh We “Uinks India” are a Sole Proprietorship based firm, engaged as the foremost Manufacturer, Wholesaler, Service Provider of Pad Printing Machine, Cliche Plate, Pad Printing Ink and many more. Offering you a complete choice of products which include 404 Silicone Printing Pad, 303 Silicone Printing Pad, 01 Silicone Printing Pad and L Silicone Printing Pad. Leading Manufacturer of Printing Pads, UI100D Double Color Pad Printing Machine, Pad Printer and Silicone Pads from Noida. Providing you the best range of Pad Printing Pad, UI100S Pad Printing Machine and Printing Pads with effective & timely delivery.
Preview
First Floor, Sector-10,,C-152, Noida, Gautam Buddha Nagar-,
Noida - 201301
Noida - 201301
Contact Details

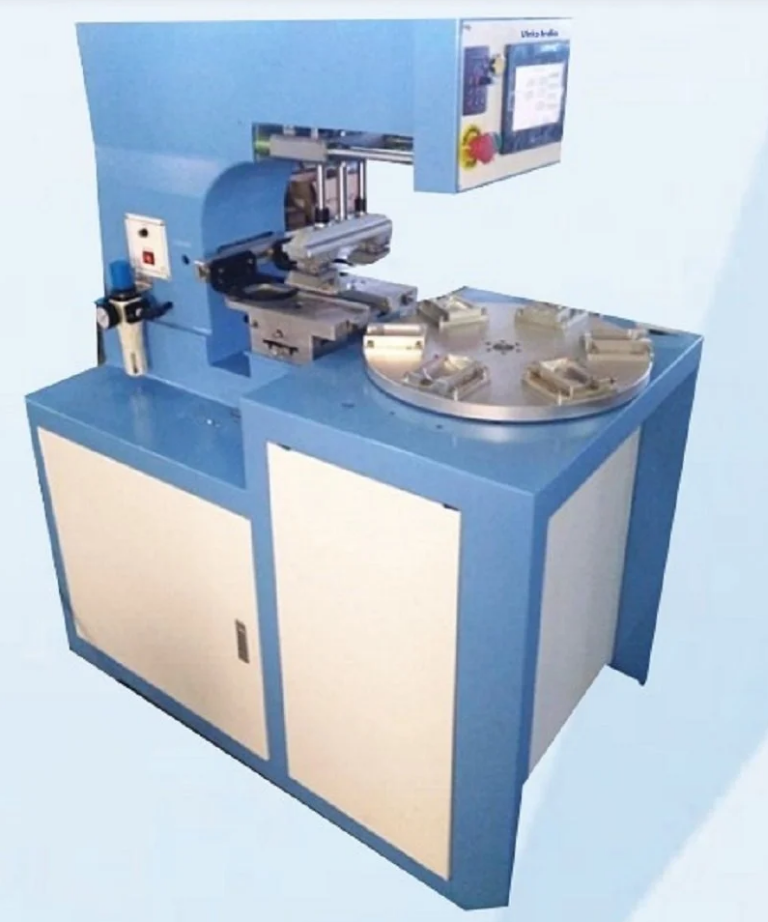

UI100D Double Color Pad Printing Machine
Capacity(piece/hr) 2000
Printing Speed 1200 Impressions/Hour
Automation Grade Automatic
Voltage 380 V
Maximum Height of Product 80 mm
Ink Cup Diameter 250 mm
Phase Three Phase
Weight 130 Kg
Cliche Size 100x210x10 mm
Air Consummation Max 0.60 m3/hr
Control Electro-Pneumatic
Printing Image Max 90mm
Brand Uinks
Current Consumption 15 W
Electric Supply 220 V 50 Hz
Tampon Stoke Max. 90 mm
Drive Pneumatic
Force Of Pressure Max. 450 N
Control Voltage 24 V
Printing Capacity Max. 2000 Stroke/Hr
Nominal Width 6 mm
Dimension (LxHxW) 650x700x380 mm
Model Number UI100D
Working Pressure 6 Bar
Height of object Max. 150 mm
Pad printing, sometimes known as tampography or tampo printing, is a wet process in which three-dimensional plastic, glass, metal, rubber, or wooden part can be decorated.
