PCE Vibration Calibrator PCE-VC20
Model Name/Number PCE-VC20
Usage/Application Industrial
Brand PCE
Vibration frequency 159.15 Hz +- 0.05 % (-10 ... 55 DegreeC / 14 ... 130 DegreeF)
Radian frequency 1000/s +- 0.05 % (-10 ... 55 DegreeC / 14 ... 130 DegreeF)
Operating humidity range < 90 % at 30 DegreeC / 86 DegreeF,non-condensing

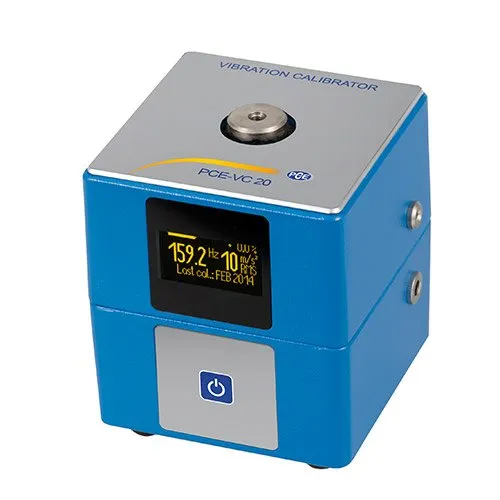

PCE-VC20 Vibration Meter Calibrator
For vibration acceleration, velocity and displacement
PCE-VC20 is a vibration meter calibrator used to calibrate vibration sensors, analyzers and testers. Suitable for calibrating equipment weighing up to 600 g (1.32 lb), this rechargeable-battery-powered vibration calibrator generates mechanical vibrations with a quartz-stabilized vibration frequency of 159.15 Hz (radian frequency 1000/s).
Load-independent vibration magnitude with an RMS of:
- 10 m/s² vibration acceleration
- 10 mm/s vibration velocity
- 10 µm vibration displacement
PCE-VC20 is a vibration meter calibrator used to calibrate vibration sensors, analyzers and testers. Suitable for calibrating equipment weighing up to 600 g (1.32 lb), this vibration calibrator generates mechanical vibrations with a quartz-stabilized vibration frequency of 159.15 Hz (radian frequency 1000/s).
PCE-VC20 features load-independent vibration magnitude with an RMS of:
- 10 m/s² vibration acceleration
- 10 mm/s vibration velocity
- 10 µm vibration displacement
