The finest and the most diverse range of Winding Machines is Manufacturer and Supplier by us at Trishul Winding Solutions Private Limited, ever since our inception in the year 1992. The range comprising the finest Transformers Coil Winding Machine, Programmable Winding Machine, Winding Machine, HV Coil Winding Machine, Auto Coiler Front Loading Machine, Gear Head Torodial Winding Machines, Lamination Cut to Length Line Machine, etc, is widely acclaimed and asked for. The products manufactured in accordance with the set industry norms and guidelines, utilizing the finest raw materials and modern machines. This ensures the product’s performance, strength, capacity and longer service life. Further, the offered range is quite reasonably priced. The state-of-the-art infrastructural facility at Trishul Engineers, has been equipped with all the machinery and equipment, needed for the attainment of a number of the firm’s predefined targets. The facility upgraded on a highly regular basis, facilitates extension of our reach in the market and maximization of our production capacity. The facility has been parted into a number of highly operational units, to manage the firm’s operations in the most efficient and effective manner. Under the leadership of our CEO & Managing Director, Mr. Basavaraju GE, attainment of success, is just a step away. In addition to this, his ability to understand the market, analyze, determine changes, makes commendable decision and managerial skills, have helped us build our path to glory.
Preview
Plot No 303B, KIADB Industrial Area,,2nd Phase, Harohalli, Kanakapura, Ramanagara,
Ramanagara - 562112
4 from 1 reviews
Contact Details

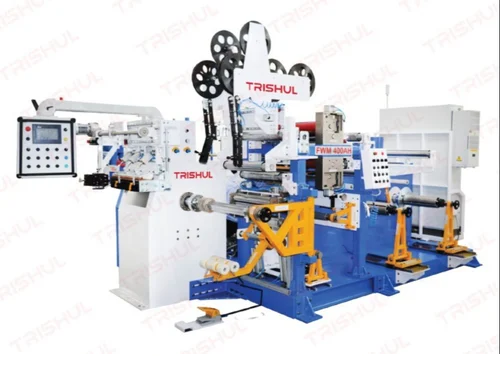

FWM-400AH Transformer Coil Winding Machine

FWM-400AH Transformer Coil Winding Machine

Usage/Application Industrial Transformer Type Power Transformer Phase Three Phase Model Name/Number FWM-400AH Frequency 60 HZ Material SS, MS Max Foil Width 400 mm Min. Foil Width 150 mm Max Winding Speed 50 Rpm End Fill Strip Max 25 mm End Fill Strip Min 10 mm No. Of Decoilers 1 Web Aligner Auto Max. Foil Thickness 2 mm (Alu), 1.5 mm (Copper Insulation Decoilers 1 Foil Tension Web Tension Lead Out Connection Tig Welding Country of Origin Made in India Single Spindle side loading type Robotic welded steel structural frame with face plate mountable direct driven asynchronous Geared motor of 11 KW with out-put RPM of 25 continuously variable type through close loop precision VFD drive system.
