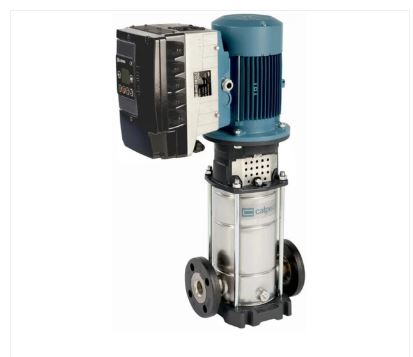

MXV Calpeda Vertical Multistage Pumps

Model Name/Number MXV Motor Horsepower 2 HP Head Vertical Material Stainless Steel Phase Three Phase Power Source Electric Product Type Multistage Discharge Pressure 25 Bar. Rotating Direction Anti Clock Wise Maximum Discharge Flow 110 m3/hr. Cooling Method Air Cooling Speed 2900 rpm Frequency 50Hz Degree Of Protection IP 55 Usage/Application Industry, Water treatment, Boiler feed, Industrial Washing Machine, Booster System, HPN system etc. Brand Celpeda Winding Type Copper Flow Rate LPM 200 LPM Vertical multi-stage pumps with suction and delivery connections of the same diameter and arranged along the same axis (in-line). Corrosion-resistant bearing sleeves lubricated by the pumped liquid. Removal of the mechanical seal without dismantling the motor (for MXV 25-32-40-50,100 with motors exceeding 4 KW). A pump with thrust bearing and sleeve coupling for use of any standard motor with IM V1 construction. Version with frequency converter (on request). The MXV EI pumps are available with power from 0,75 kW up to 22 kW, the pumps are equipped with I-MAT installed on board which allows to realize a variable-speed system extremely compact and efficient, ideal in applications of water supply and in the distribution of hot and cold water. The pump is equipped with transducers suitable for operation and is already programmed at the factory.
