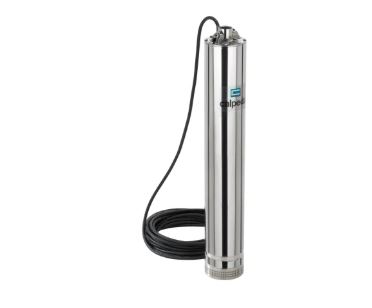

MXS SS Multistage Submersible Pump

Number Of Stages Multi Stage Pump Usage/Application Water Supply From Wells, Tanks Or Reservoirs Type Electric Motor Phase Three Phase Head 100m Power 4 HP Power Source AC Powered Voltage 400 VAC Features Flexible, Robust, Reliable, Low Noise Operation, Greater Safety, Low Cost Installation. Motor Speed 2900 rpm Maximum Operating Pressure 10 Bar Pump Model MXS Direction Of Rotation Clockwise Discharge Lpm 184 LPM Brand Celpeda 5” Close coupled multi-stage submersible pumps. All parts in contact with the fluid both internal and external are in chrome-nickle stainless steel. MXSM with built-in capacitor, accessible through the delivery casing. Hydraulics located below the motor with the motor cooled by the pumped fluid. Safe operation is possible with the motor only partially submerged. Double shaft seal with oil chamber. The suction strainer prevents the entrance of solids with diameter bigger than 2 mm.
