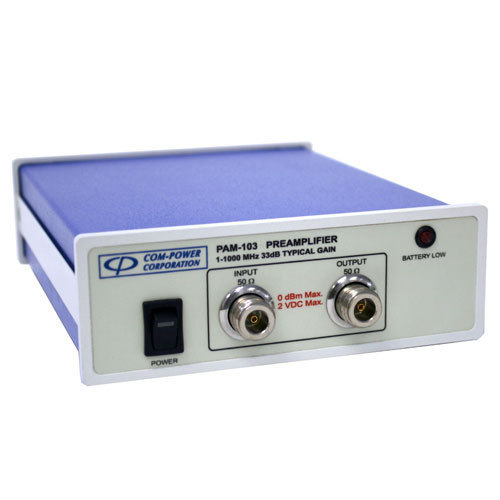

PAM-103 EMI Preamplifier
Battery Runtime Less than 30 hour
Voltage 15V
Current 500 mA
Dimension 2.3''X6.6''X8.3''
Weight 1.45 kg
Frequency Range 1 MHz to 1 GHz
Preamplifier Gain 33 dB (+/-3 dB)
Operating Temperature Range 0 to 40 Degree Celsius
Matching up with the ever increasing requirements of the customers, our company is engaged in providing PAM-103 EMI Preamplifier.
Other Details:
Linear RF Input Range: < -30 dBµV to 89 dBµV
POUT @ 1 dB Compression: 18.3 dBm
POUT @ 3 dB Intercept (IP3): 32 dBm
Noise Figure: < 3.3 dB
Input Sensitivity: < -30 dBµV (< 31.6 nV)
VSWR (RF Input/Output Ports): 1.69:1 (maximum), 1.25:1 (average)
Return Loss (RF Input/Output Ports): 29.5 dB (minimum), 44 dB (average)
RF Connectors (Input/Output Ports): 50Ω N-Type (female)
Reverse Isolation: >40 dB (output port to input port)
Max. RF Input Ratings: 107 dBµV (225 mV), 0 dBm (1 mW), 2 VDC
