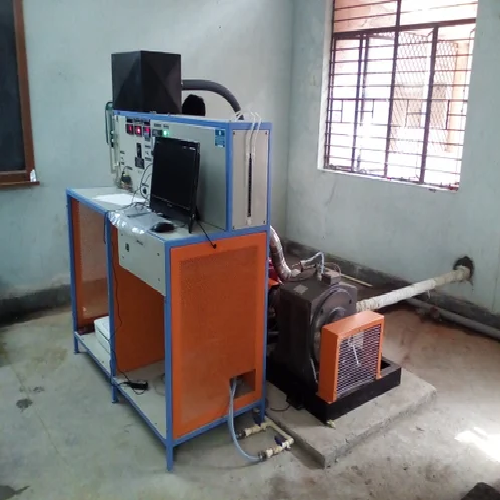

Oem Computerized Diesel Engine Test Trainer (With Air Cooled Eddy Current Dynamometer)

GENERAL DESCRIPTION: The setup will consist of single cylinder, four stroke Diesel engine connected to eddy current type dynamometer for loading. It is provided with air tank, exhaust gas calorimeter. It is provided with necessary instruments for combustion pressure, crank-angle, airflow, fuel flow, water flow, temperatures and load measurements. These signals are interfaced to computer through high speed data acquisition device. The set up has stand-alone panel consisting of air box, fuel tank (Diesel/Bio Diesel) measuring unit, transmitters for air and fuel flow measurements. ENGINE Make Brand New Engine Single cylinder, 4 stroke, water cooled Diesel Engine Model AV1/Eqvt Fuel Diesel/Bio Diesel No of Cylinder 1 Stroke 4 Stroke length 110 mm bore 80 to 85 mm Capacity 500-600cc Power out put Diesel mode: 3.75 KW @ 1500 Type of start Crank start or Self Start with battery & charger DYNAMOMETER Type Eddy Current Dynamometer loading through computer Dynamometer Loading unit Type variable speed, Supply 230V AC. Coupling Direct Load cell Load Range: 50 Kg, 0-30mV, Strain Gauge Load indicator Digital, Range 0-50 Kg, Supply 230VAC INSTRUMENTATION Combustion Analysis kit and Instrumentation Combustion pressure Sensor Make – Kistler Principle - Piezoelectric Range - 0-100 bar Cooling – Air cooled type pressure sensor mounting location With sleeve Vertically inside the engine cylinder block and Sensor is placed inside sleeve near to combustion chamber. Charge amplifier Charge amplifier is Inbuilt with Kistler pressure sensor Data Acquisition & Analysis Software National instruments Lab View based Powerful software Additional Information: Item Code: EN18
