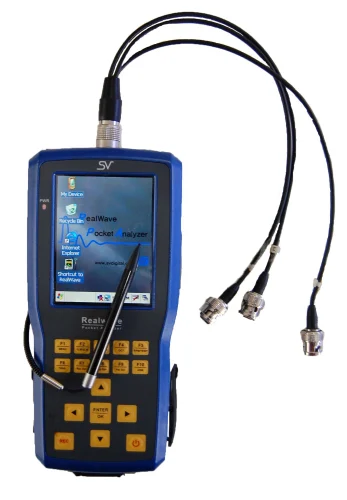

Portable Vibration Analyzer-PA201
Model Name/Number PORTABLE VIBRATION ANALYZER-PA201
Usage/Application Industrial Use
Display LCD 3.5
Color Realware
Battery Life Lithium Polymer 4000mhA Removable
Frequency Range 0.5 16kHz 3dB or 0.5 20kHz 3dB
Power 5V 3A
Weight 0.3 Kg
Temperature Operating Temperature -10 C to +50 C -14 F to +122 F Storage Temperature -30 C to 70 C 22 F to 158 F
Brand SV
Feature Premium Quality
Type Digital
Vibration Analyzer PA201:
We being a customer oriented enterprise, we are engaged in providing a wide array of Vibration Analyzer PA201.
Features
IEPE Accelerometer Connection
Time Signal Recording, Playback Function(Wave File)
Real-time Hearing in Measuring Mode(Head Phone Option)
Sensor Calibration Sensitivity Calibration by S/W
Input Signal Gain 2, 4, 8, 16, 32, 64 Times Selectable
Auto Scale(Y-axis) and Peak Detection
Start Measuring Time Delay Function(pre-trigger)
Recording Information Setup(Objective and Axis etc.)
Measurement Configuration Saving, Loading and Recall from File
FFT Data Recording and Comparative Analysis(ref File)
Wave Replay and Select Part Function
Data Export Text, Excel, Matlab, BMP, JPEG
Overload Detector and Alert
