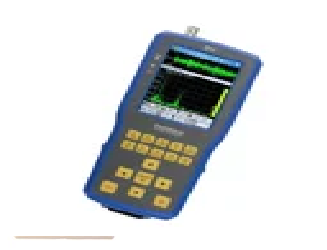

FFT Based Octave Analyzer

Model RPA Brand SV Usage/Application Industrial Use Model Name/Number FFT-BASED-OCTAVE-ANALYZER-PA201 Application Industrial Use Display 3.5" Battery Life Lithium Polymer 4000mhA Removable Frequency Range 0.5 16kHz 3dB or 0.5 20kHz 3dB Power 5V-3A Weight 0.3 Kg Temperature Operating Temperature -10 C to +50 C -14 F to +122 F Storage Temperature -30 C to 70 C 22 F to 158 F FFT Based Octave Analyzer- PA201. We being a customer oriented enterprise, we are engaged in providing a wide array ofFFT Based Octave Analyzer-PA201. Features: IEPE Accelerometer Connection Time Signal Recording, Playback Function(Wave File) Real-time Hearing in Measuring Mode(Head Phone Option) Sensor Calibration : Sensitivity Calibration by S/W Input Signal Gain : 2, 4, 8, 16, 32, 64 Times Selectable Auto Scale(Y-axis) and Peak Detection Start Measuring Time Delay Function(pre-trigger) Recording Information Setup(Objective and Axis etc.) Measurement Configuration Saving, Loading and Recall from File FFT Data Recording and Comparative Analysis(ref File) Wave Replay and Select Part Function Data Export : Text, Excel, Matlab, BMP, JPEG Overload Detector and Alert Specification: A/D Converter24 BitInput Channel 1 - 4 Channel, TachoSensor Type IEPE, AC, RPM, IR Temperature SensorSampling Frequency 32,768Hz or 51,200HzInput Range ±5V(peak) or ±2.5V(peak)Dynamic Range 17 - 134dB (50mV/Pa x 10Gain), 37 - 160dB (50mV/g x 10Gain)Input Signal Gain 2, 4, 8, 16, 32, 64ITEM DAQ SPECFrequency Range 0.5 - 16kHz (3dB) or 0.5 - 20kHz (3dB)Temperature-10°C to +50°C
