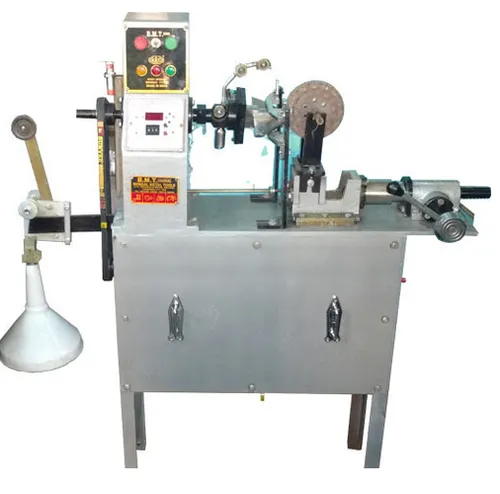

Ceiling Fan Stator Winding Machine

Winders have a center roll (a bobbin, spool, reel, belt-winding shell, etc.) on which the material is wound up. Often there are metal bars that travel through the center of the roll and are shaped according to their intended purpose. A circular bar facilitates greater speed, while a square bar provides a greater potential for torque. Edge sensors are used to sense how full the center roll is. They are mounted on adjustable slides to accommodate many different widths, as the width increases as the center roll is filled. The sensitivity of the sensor depends on the required speed of operation.
