Medical Equipment

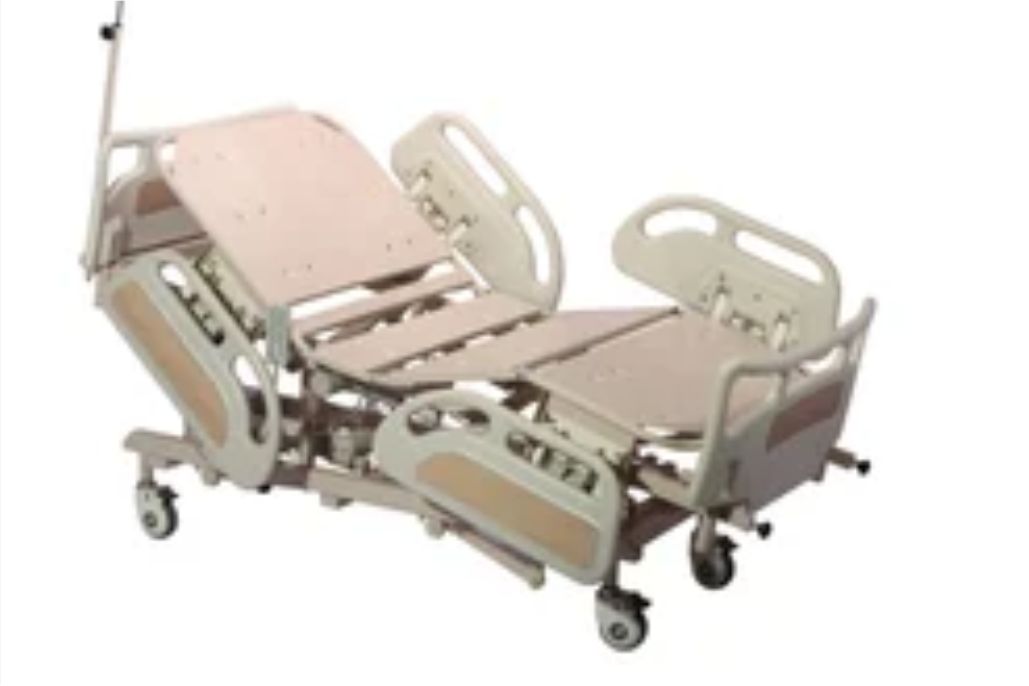

4 function cot, 5 function cot, 7 function cot 2” x 1” MS rectangular Tubular frame work entangling the 18G CR Sheet with internal beadings and Cross L angles for Strength and durability at the foot end covering 20.5”providing first section. Knee flex at 36.25”. Pelvis at 45” .The other section is the raising adjustable back rest with 30.5”. Robust 2” x 1” base frame with heavy seamless pipes, MS flats and Bearings provides the sturdy base for the Main Frame. The base is attached to 125mm castors as standard and can be designed as per customer’s choice. Pre Treated Non Carcinogenic Organic Epoxy Powder Coating Functions: Back Raise (0 to 70 deg) and Leg Raise (0 to 30deg) with knee flex. Trendlenburg and Reverse Trendlenburg. Up and down movement from 20” ground level to 29” at the top end position. Options: Motorized Wired Remote control actuators. (With optional Nurse Control arm panel). (Weight calculation and wet deduction can be provided as per customer’s choice). Specifications: Approximate Dimension: 82” L X 38” B X 20”- 29” H (in inches) Mattress: 4” Foam covered with rexin
