Spark Motors Private Limited
Incorporated in the year 2002, at Navi Mumbai (Maharashtra, India), we, Spark Motors Private Limited are recognized as the leading Manufacturer, Wholesaler and Importer of an excellent quality Stepper Motor Driver, Spindle Motor, AC Servo Motor and Driver, etc. The offered range of products are highly applauded by our prestigious clients due to their unique features which includes sturdy construction, hassle free performance easy installation, high functionality, anti corrosive body, elevated durability, enhanced functional life, low maintenance and many more.
Preview
No. 3 Tekadi Bunglow Yogi Nagar Panchpakhadi, Ghansoli, Thane-400602,,
Thane - 400602
Thane - 400602
Contact Details

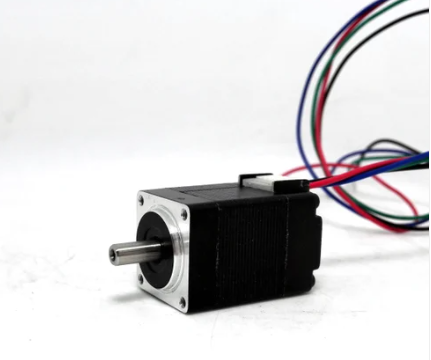

Nema8 20 Mm Hybrid Stepper Motor
Step Angle 1.8 Degree
Temperature Rise 80 Degree Celsius Maximum
Max Radial Force 28N (20mm From the Flange)
Brand Name Spark Motors
Max Axial Force 10N
Ambident Temperature -20 to +50 Degree Celsius
Insulation Resistance 100M Min. 500VDC
Dielectric Strength 500VAC for 1 minute
Shaft Radial Play 0.02 Max.(450g-Load)
Shaft Axial Play 0.08 Max.(450g-Load)
Thane - Maharashtra
