Spark Motors Private Limited
Incorporated in the year 2002, at Navi Mumbai (Maharashtra, India), we, Spark Motors Private Limited are recognized as the leading Manufacturer, Wholesaler and Importer of an excellent quality Stepper Motor Driver, Spindle Motor, AC Servo Motor and Driver, etc. The offered range of products are highly applauded by our prestigious clients due to their unique features which includes sturdy construction, hassle free performance easy installation, high functionality, anti corrosive body, elevated durability, enhanced functional life, low maintenance and many more.
Preview
No. 3 Tekadi Bunglow Yogi Nagar Panchpakhadi, Ghansoli, Thane-400602,,
Thane - 400602
Thane - 400602
Contact Details

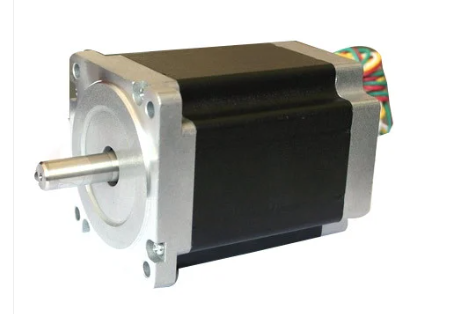

Nema34 Two Phase Hybrid Stepper Motor
Phase 2 Phase
Step Angle 1.8 Degree
Shaft Radial Play 0.02 Max.(450g-Load)
Max Radial Force 220N (20mm From the Flange)
Rotor Inertia 1000 g.cm2
Insulation Resistance 100M Min. 500VDC
Max Axial Force 60N
Motor Length 65 mm
Holding Torque 3.4 N.m
Brand Name Spark Motors
Temperature Rise 80 Degree Celsius Maximum
Ambident Temperature -20 to +50 Degree Celsius
Thane - Maharashtra
