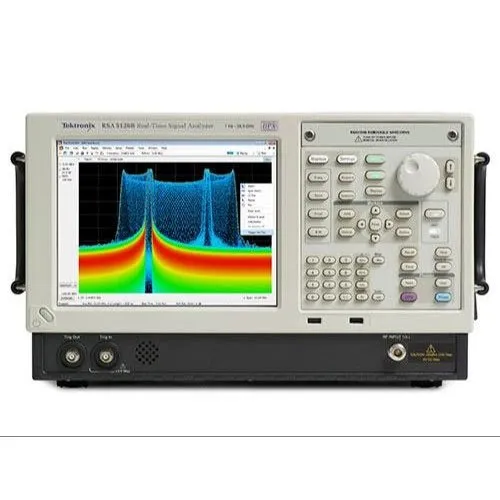

RSA5000B Tektronix Real Time Spectrum Analyzer

Model Name/Number RSA5000B Brand Tektronix Size 282 X 473 531mm Weight 29 kg (With all options) Trigger Modes Free run,Triggered,Fast Frame Trigger Setting Trigger position settable from 1 to 99% of total acquisition length Trigger Combinatorial Logic Trigger 1 AND trigger 2 / gate may be defined as a trigger event Spectrum Capacity Up to 3,125,000 spectrums per second Real Time Acquisition Bandwidth 25 MHz,40 MHz,85 MHz,125 MHz,165 MHz Trigger Action Save acquisition and/or save picture on trigger Trigger Event Source RF input,Trigger 1 (front panel),Trigger 2 (rear panel),Gated,Line Power Level Trigger Accuracy For trigger levels >30 dB above noise floor,10% to 90% of signal level Power Level Trigger Range 0 dB to -100 dB from reference level Span Accuracy +/-0.3% of span (Auto mode) Trigger Type Power,Frequency mask,Frequency edge,DPX density,Runt,Time qualified Visualize and characterize devices and components with precision and accuracy using the powerful, industry leading RSA5000B Real Time Spectrum Analyzer. This advanced spectrum analyzer makes high performance and sensitivity measurements for spurious signals much faster than other spectrum analyzers, so you can conduct conventional measurements and troubleshoot quickly, accurately and successfully.
