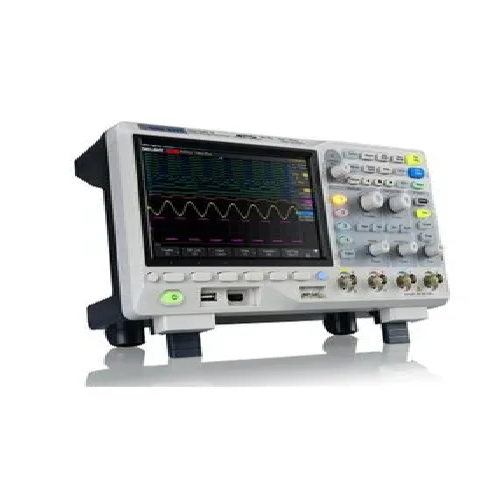

Siglent SDS1104X-E Mixed Signal Digital Oscilloscope

Model Name/Number SDS1104X-E Brand Siglent Bandwidth 100 MHz Usage/Application Iindustrial and Rresearch Record Length 14 MPTS Sample Rate(Sample/second) 1 GSa Accuracy 0.01% Warranty 1 year Channels Four Sensitivity 500 uV/div Waveform Memory 14 MPts Maximum Capture Rate 100,000 in Normal mode, 400,000 in Sequence mode Product Details: SIGLENT’s new SDS1000X-E Super Phosphor Oscilloscopes feature two channel and four channel models. The two channel model is available with a 200 MHz analog bandwidth, a single ADC with a 1 GSa/s maximum sample rate, and a single memory module with 14 Mpts of sample memory. The four channel scope is available in 100 and 200 MHz models and incorporates two 1 GSa/s ADCs and two 14 Mpts memory modules. When all channels are enabled, each channel has sample rate of 500 MSa/s and a standard record length of 7 Mpts. When only a single channel per ADC is active, the maximum sample rate is 1 GSa/s and the maximum record length is 14 Mpts. For ease -of -use, the most commonly used functions can be accessed with its user- friendly front panel design.
