Analog Discovery Analog Oscilloscope
Model Name/Number Analog Discovery
Bandwidth 50 MHz
Usage/Application Used in the Oscilloscope, Network Analyzer, Spectrum Analyzer, Voltmeter, Impedance Analyzer, and Da
Record Length 14 MPTS
Sample Rate(Sample/second) 1 Gs
Accuracy 0.01 %
Warranty 1 Year
Channels 16
Resolution 14-Bit Resolution
Maximum Current Output 700mA
AC Amplitude +-5 V
Brand Digilent
Power 12 volt supply: 12V +-5%; 0.2 Amps max
Operate 100 MS/s
Maximum Power Output 2.1W
Input Range +-25 V (+-50 V diff)
Analog Bandwidth 30+ MHz @ 3dB
Product Details:

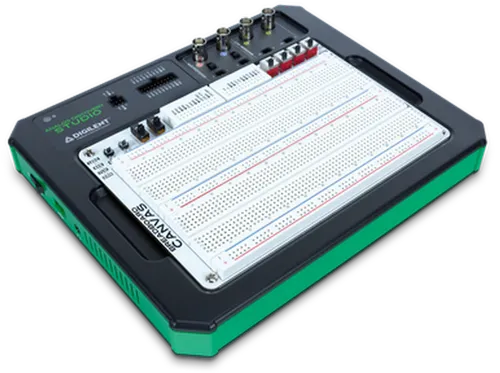

What is the Analog Discovery Studio?
The Analog Discovery Studio is a fully functional, portable test and measurement device that can turn any cross-functional space into a pop-up electronics laboratory. Equipped with 13 instruments, including an Oscilloscope, Logic Analyzer, Spectrum Analyzer, Waveform Generator, and more; the Analog Discovery Studio provides an entire stack of bench-top instruments with a convenient, replaceable, and breadboardable interface, perfect for enabling student learning anywhere.
