Siddhapura Machines
Siddhapura Machines is one of the leading manufacturers of Siddhapura 25mm Pillar Drilling Machine, Siddhapura Drilling Cum Milling Machine etc. Heavy Duty All Geared Vertical Milling Machines with Three Axis (X-Y-Z) Auto-Feed with Rapid traverse. Available in table sizes from 1300 x 280 mm TO 1600 x 350 mm. We are providing our clients with Universal Milling Machine. Extensively demanded for various industrial purposes, these machines are manufactured with sophistication in accordance with the industry set norms and guidelines.
Preview
C 1B 258, Aji GIDC,,Road R, Phase 2, Manohar Society,,
Rajkot - 360003
Rajkot - 360003
Contact Details

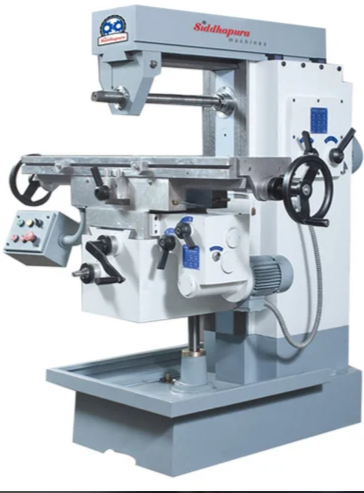

Siddhapura Geared Head Universal Milling Machine
Spindle Speeds 1000 RPM
Motor Power 2 HP
Material Cast Iron
Arbour Diameter MM 25.4mm (1)
Usage/Application Production / Tool Room / Die mold / Educational.
Working Space mm 1100 x 280mm
Automation Grade Semi Automatic
Cross Traverse MM 225mm
Table Size 1100x280mm
Weight 1450 kg
Warranty One Year
Spindle Taper ISO-40
Main Motor 2hp 3-Phase 1440 RPM
Speed 90-1000 RPM x 9 Steps
Frequency 50 Hz
Brand Siddhapura
An All Geared Head Universal Milling Machine with Longitudianal - X Axis on Auto feed, driven by a seprate Motisied Gearbox.
