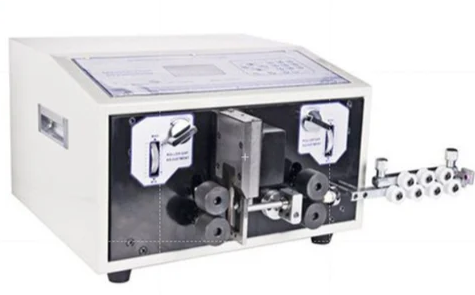

ST-02F 8mm Wire Cutting Stripping Machine
Automatic Grade Automatic
Material Wires
Model Number/Name ST-02F
Wire Types For Wire harness industry
Capacity 3000-7000pcs/hour
Automation Grade Automatic
Cutting Accuracy 0.002
Frequency 50Hz
Blade Type High Speed
Design Standard
Motor Power 300W
Power Consumption 300W
Voltage 220V
Specification of Wire Stripping Machine ST-02F
Model: ST-02F FOUR DRIVERS
Power: AC220/ 50HZ 110V/60HZ
Power: Rated 300W
Display: Full English LCD Display
Cutting length: 1-9999mm
Stripping length: End of a thread 0-35, line tail 0-15
Motor Step Angle Accuracy: 3-phase 6 shot 1.5/3
Cutting Tolerance: ±(0.002xL) mm or less
Cut the middle of stripping: 11
Core cross-section cut-line: 0.2 – 8.0mm²
Conduit diameter: Φ10
Appropriate wire stripping: PVC, Teflon, glass and wire
Blade Material: Hard tungsten steel
Stripper speed (Article / h): L: 100mm, 3000~7000pcs/hour
Drive Mode: Four drives
Automatic Grade Automatic
Material Wires
Model Number/Name ST-02F
Wire Types For Wire harness industry
Capacity 3000-7000pcs/hour
Automation Grade Automatic
Cutting Accuracy 0.002
Frequency 50Hz
Blade Type High Speed
Design Standard
Motor Power 300W
Power Consumption 300W
Voltage 220V
Specification of Wire Stripping Machine ST-02F
Model: ST-02F FOUR DRIVERS
Power: AC220/ 50HZ 110V/60HZ
Power: Rated 300W
Display: Full English LCD Display
Cutting length: 1-9999mm
Stripping length: End of a thread 0-35, line tail 0-15
Motor Step Angle Accuracy: 3-phase 6 shot 1.5/3
Cutting Tolerance: ±(0.002xL) mm or less
Cut the middle of stripping: 11
Core cross-section cut-line: 0.2 – 8.0mm²
Conduit diameter: Φ10
Appropriate wire stripping: PVC, Teflon, glass and wire
Blade Material: Hard tungsten steel
Stripper speed (Article / h): L: 100mm, 3000~7000pcs/hour
Drive Mode: Four drives
