Sharadatronic Instruments
Sharadatronic Instruments was established in the year 1988 and since then we are engaged in the manufacturing, supplying and exporting of Quality Control Testing Equipment for Lighting Industries. Ours is a permanent SSI unit registered with Govt. of Karnataka. We supply quality control instruments and equipments to test LED Luminaries, LED Street Light, Soiled State lighting products (LED), Compact Fluorescent Lamps (CFL), High Pressure Sodium, Mercury Vapour and Metal Hailed lamp (HPSV / HPMV / MH lamps), Tubular Fluorescent Lamps (T8 / T12 / T5 TFL), GLS lamps, Automobile lamps, Halogen lamps, Ballasts / Chokes, Fluorescent starters & others as per IEC, BSS and IS specification and other custom-built equipments to cater the requirements of lighting industries.
We have supplied our products to hundreds of lighting industries all over India including many government test laboratories and also exported to many countries. Some of our esteemed customers in the industrial side are Philips India, Osram, Havells, HPL, NTL, Crompton Greaves, Anchor, Indo Asian, Orient, Wipro, Surya Roshini, Venture Lighting, Arya Filament, Eveready & others.
Preview
No. 8, Site No. 45, Hanumantha Nagar,,Srigandakavalu Sunkadakatte,,
Bengaluru - 560091
Bengaluru - 560091
Contact Details

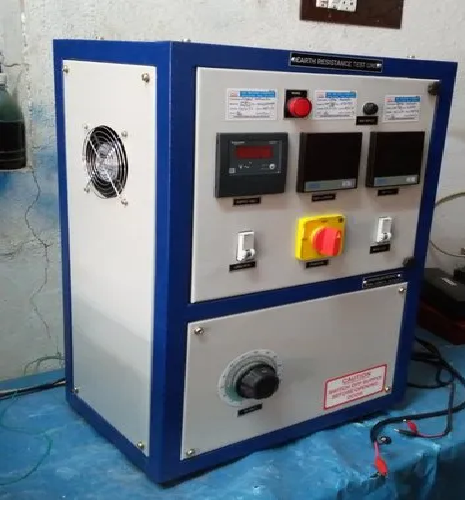

EARTH RESISTANCE TESTER
Material CRCA
Usage/Application Laboratory
Type Of Testing Machines LED LUMINAIRE EARTH RESISTANCE
Color White
Packaging Type Wooden Box
Display Type Digital
Load Capacity 25A
Brand SHARADATRONICS
SPECIFICATION FOR EARTH RESISTANCE TEST UNIT
Scope :- This unit is suitable to carry out to check the resistance of the body of the LED lamps and luminaire with earth terminals. This test is conducted as per IS 10322 (Part 1) : 2014 Cl. 7.2.3.
Description :- Metal parts of luminaires which may become live in the event of an insulation fault and which are not accessible when the luminaire has been mounted, but are liable to come in contact with the supporting surface, shall be permanently and reliably connected to an earthing terminal. This test is conducted as per IS 10322 (Part 1) : 2014 Cl. 7.2.3.
Specification :-
1. Construction :- This equipment is single phase construction type heavy gauge steel with scratch resistance powder coat finish.
2. Current source:- Minimum 10 ampere source with No-load voltage not exceeding 12V with appropriate protections is provided. Continuous current delivering capability for at least 1 minute for which a suitable step down transformer is provided.
3. Voltage measurement:- Ability to measure the voltage drop between the earthing terminal or earthing contact and the accessible metal part.
4. Switches and controls :- An instrument console/panel consists of the following switches and controls.
