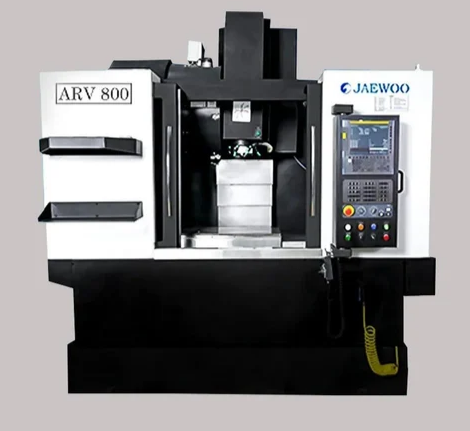

Jaewoo ARV 800 VMC Machine
Number of Axis 3 Axis
X-Y-Z Axis Travel 800 x 510 x 510 mm
Spindle Power 11 kW
Model ARV-800
Applicable Industry Automobile, Infrastructure, Aerospace, Die & Mould
Job Material Titanium, Cast Iron, Aluminium, Steel
Spindle Taper BT-40
Table Working Surface Size 900 x 510 mm
Table T-Slot Size 5 x 18 x 100 mm
Table Maximum Load 450 kg
Distance from Spindle Nose to Table Surface 610 mm
Rapid Traverse Rate (X/Y/Z Axis) 30 m/min
ATC Magazine Capacity 20 Tools
Power Capacity 15 KVA
Machine Weight 4000 kg
Machine Dimension 2200 x 2700 x 2600 mm
Spindle Speed 5000 RPM
Brand Jaewoo
