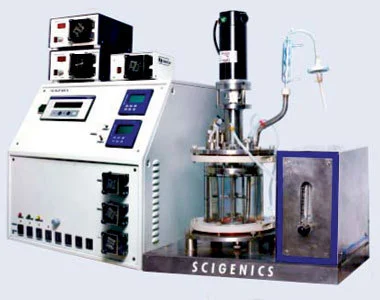

Scigenics Bioferm LA

Total Capacity 3, 5 Working Maximum 2 ,3 L MCC Glass & Stainless Steel Controller LA1 - Independent Controllers ,LA2 - PLC Temperature Range Fermentation From 5 Degree C Above Coolant Temperature To 50 Degree C Temperature Sensor Platinum RTD Agitation Drive DC Motor - Easily removable - Top drive Agitation Range 100 To 1000 rpm Agitation Control DC Drive Agitation Impellers Four / Six blade Rushton turbine impellers. Other impellers optional Agitation Indication Digital Display Aeration Air Flow Standard Rotameter. Thermal Mass Flow Meter / Controller is offered as option Aeration Inlet Or Exhaust Filter 0.2 micron autoclavable PTFE (Disposable Aeration Condenser Exhaust condenser - Glass to minimize evaporation pH Gas Mixing Unit Optional pH Range 0 To 14 pH Probe Gel Filled probes pH Control Through peristaltic pumps. Dissolved Oxygen Range 0 To 100 Percentage Dissolved Oxygen Probe Polorographic Dissolved Oxygen Control Mode Control through air flow or speed or cascade in LA2 models Antifoam Control Level Switch and Peristatic Pump Electrical Data Power Basic 0.5 KVA Software OPC server or SCADA package Features: Single wall glass with Stainless Steel end caps Non - welded head plate construction Cartridge heater & water circulation loop for effective temperature control Capacity range : 3L and 5L, Interchangeable shell with same head plates Easy to remove - self aligning motor Motor drive with Tacho feed back for DC Motors Twin, tri & quad versions are available Ergonomically designed for easy operation and servicing Flexibility of various control combinations & custom design Complete unit with standard utilities Superior design for optimal heat & mass transfer for high cell density Dip Sampling facility Gas mixing units
