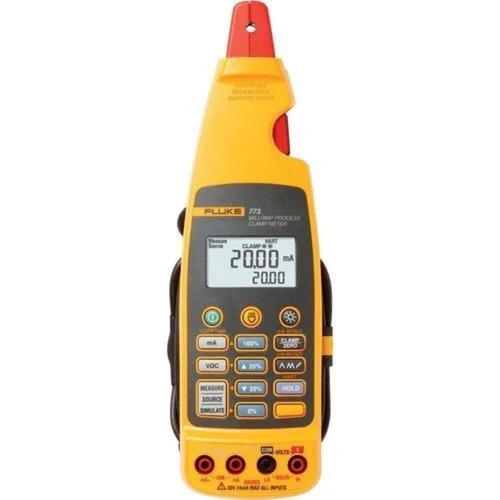

Fluke 773 Milliamp Clamp Meter

DC Voltage 0-24V DC Current - Sensing Range 0-20.99mAMP Battery 2*AA Model Name/Number Fluke 773 Brand Fluke Warranty 3 Year Usage/Application Industrial Product Description The 773 mA Clamp Meter features: Best in class 0.2 % accuracy 0.01 mA resolution and sensitivity Measure 4 to 20 mA signals without ”breaking the loop” Measure mA signals for PLC and control system analog I/O Dual backlit display with both mA measurement and percent of 4 to 20 mA span Measurement Spotlight illuminates hard to see wires in dark enclosures Detachable clamp with extension cable for measurements in tight locations Measure 10 to 50 mA signals in older control systems using the 99.9 mA range Automatically change the 4 to 20 mA output for remote testing Power saving features, auto-off, backlight timeout extend battery life Hold function captures and displays changing measurements Measure 4 to 20 mA signals with in-circuit measurement Simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters Source 4 to 20 mA signals for testing control system I/O or I/Ps mA output linear ramp or 25% step output Automatically change the 4 to 20 mA output for remote testing DC voltage measurement to verify 24V power supplies or voltage I/O signals Source DC voltage to test input devices that accept a 1-5V or 0 to 10V signals Scaled mA output provides a continuous mA signal that corresponds to the 4 to 20 mA signal measured by the mA clamp. Enables milliamp signal logging to a separate logging device without breaking the loop Output mA signal enables a logging DMM or other device to record the 4- to 20 mA signal without breaking the loop mA in/out: simultaneously measure the mA signal with the clamp and source a mA signal Apply a mA input signal to a device and measure its’ 4-20 mA output on devices such as valves or mA isolators Voltage output linear ramp or 25% step output Automatically change the voltage output for remote testing Specifications Diameter of measurable conductor 0.177" or 4.5 mm max Operating temperature -10 to 50ºC Storage temperature -25 to 60ºC Operating humidity < 90% @ <30ºC, < 75% @ 30 to 55ºC Operating altitude 0 to 2000 m IP rating IP 40 Size 44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in) Weight 410 g, (14.4 oz) Vibration Random 2 g, 5 to 500 Hz Shock 1 meter drop test (except the jaw) EMI/RFI Meets EN61326-1 For current measurement w/ JAW, add 1mA to specification for EMC field strengths of 1V/m up to 3V/m.
