Sansel Instruments And Controls
Established in the year 2000, we, Sansel Instruments And Controls are a famous manufacturer, trader, wholesaler, service provider and exporter of high-quality Calibration and Sensors Equipment. Offered products range consists of Temperature Calibrator, Display Counter, and Data Logger. These are manufactured under the direction of experts. Apart from this, these products are admired for their long service life, easy to use, strong construction and user-friendly. Additionally, we are also offering Calibration Services to our valued clients.
We have incepted a huge infrastructural facility. Our manufacturing facility is loaded with innovative technology-based machines for offering calibration and sensors equipment in tune with the quality standards. Moreover, our equipment meets a high level of quality standards. Further, we have established a spacious warehouse that is facilitated with all the necessary tools. Also, our products are packed using supreme quality packing material to protect them from damages during shipping.
Preview
No. 1/46, Ganga Nagar 3rd main road, Near Ganga Nagar Government School,,Maduravoyal,
Chennai - 600095
Chennai - 600095
Contact Details

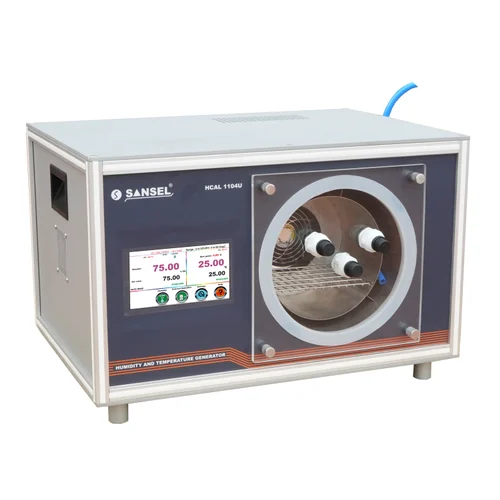

Humidity And Temperature Calibrator
Display Type Digital
Model Name/Number HCAL 1104U
Features 7" True colour TFT display with Touch screen Control range from 10 to 50 DegreeC / 5 to 95 % RH* Semi
Brand SANSEL
Type Manufacturer
Country of Origin Made in India
Manufacturer of Model HCAL 1104U
Control Range* 10 to 50°C / 5 to 95 % RH*
Resolution 0.01 °C / %RH
Stability** Better than ± 0.05 °C / 0.2 % **
Uniformity** ± 0.2 °C / 0.3 % RH **
Display
7” True colour TFT LCD Display with Touch screen
Test sensor insert port Inter changeable Acrylic door Provided on front side of the
chamber with pg21 gland (cable or sensor size range from 13 to 18mm) x 3nos
External Humidifier
Water tank capacity 6 liters (approx.)
(NOTE : 3 liter filling is enough for our application)
Humidifier Liquid Distilled water
Humidifying Time 2 %RH / sec (50 to 90 % RH)
Dehumidifying Time 6 %RH / sec (50 to 10 % RH)
Test chamber area 230mm DIA x 170mm D(Approx)
Power supply 230V AC ± 10% / 50Hz (Optional 110V AC)
Power Consumption 1000 VA
Construction Inner chamber SS 310 / outer MS powder coating
Overall Dimension 436mm L x 676mm W x 368mm H (Approx)
Instrument Weight 44 kg(without Accessories) + 6 kg (standard accessories) (Approx.)
Additional Information:
Delivery Time: 4-6 weeks
Packaging Details: Packing Metal Box and wooden Box
