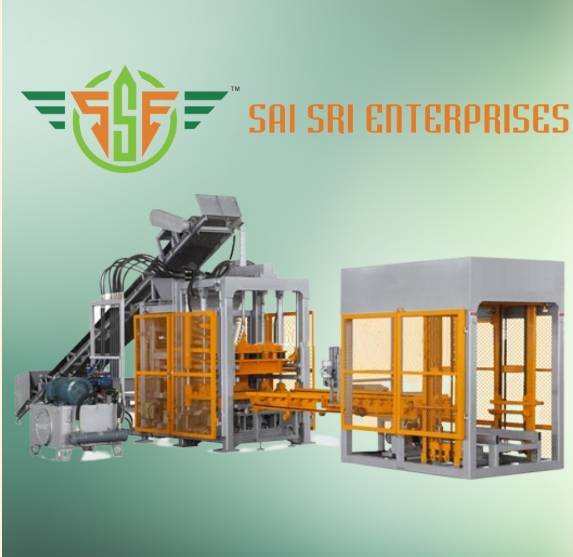

SSE 1300 Brick Blocking Machine

SSE-1300 (6 stands for the production quantity is 6 blocks “400×200×200mm” per mould, 15 stands for the cycle time is 15 seconds) has the production output of 8640-11520 blocks (400×200×200mm) or 120-160 cubic meters for one day (8 working hours). As the moulds are changeable, the concrete equipment is able to produce different types of blocks/bricks. Main Features of SSE-1300 Automatic Block Making Machine: The system equipped with a PLC control unit includes a safety logical module, producing procedure module and fault diagnosis module. Through human machine interface, the long-distance fault diagnosis function can be achieved, thus operators can handle the system smoothly by simple training. Equipped with a 4-poster conducting device and mold unit includes cover-mold and base-mold which are pressed by each separated hydraulic transmission device and controlled by synchronization unit. Thus, the system so far is so durable. Equipped with an especially-designed feeding unit including a pendulum fork to remove the raw material effectively and evenly. Equipped with a hydraulic transmission unit which is assembled of high quality elements manufactured by a world famous supplier. Equipped with a vibration unit with low frequency condition for vibration and high frequency condition for forming so that products can reach satisfied density and uniformity. The system can produce concrete masonry units with a great many specifications by replacing different molds. Main Technical Specifications of SSE-1300 Automatic Block Making Machine: Production per Mould 6 pcs/mould (Standard Block: 400×200×200mm) 30 pcs/mould (Solid Block: 240×115×53mm) 15 pcs/mould (Interlock Paver: 225×112.5×60mm) 21 pcs/mould (Holland Brick: 200×100×60-80mm) Cycle Time 15-20 seconds Production per Day(8 Working Hours) Hollow Block (400×200×200mm): 8640-11520 pcs Solid Block (240×115×53mm): 43200-57600 pcs Interlock Paver (225×112.5×60mm): 17280-21600 pcs Holland Brick (200×100×60-80mm): 24192–30240 pcs Vibrating Frequency 3300 rolls/minute Vibrating Force 60 KN Motors Power 30 KW Machine Dimensions 9680×2800×2800mm Pallet Size 850×680mm Gross Weight about 7.5T Raw Materials Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. Applied Products Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. Applied Fields widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.
