Sai Pumps And Services
Sai Pumps & Services is involved in manufacturing Chemical Process Pumps & Equipments and offering positive solutions to customers needs. We are leading manufacturer & supplier of polymer pumps, centrifugal pumps, chemical process Pumps, Industrial Pumps, metallic pumps, non metallic pumps, cross section pumps, end section pumps, side section pump, vertical glandless pumps in Ankleshwar, Gujarat, India.
Sai Pumps & Services is started by a team of Technocrats, specialist in the application engineering of process pumps and utility pumps for use in various industries.
Most of the products supplied, are custom designed for specific applications. Sai Pumps & Services cover a full range of metallic pumps & non metallic pumps which comprising of various transfer pumps and process pumps.
These industrial pumps are used for applications such as transfer of various kinds of acids, alkalies & solvents and handling of various corrosive & toxic liquids/chemicals.
Preview
Plot No. L- 5203/10,,Opposite Bal Hanuman Mandir, GIDC, New Megha,
Ankleshwar - 393002
Ankleshwar - 393002
Contact Details
Metallic Pump

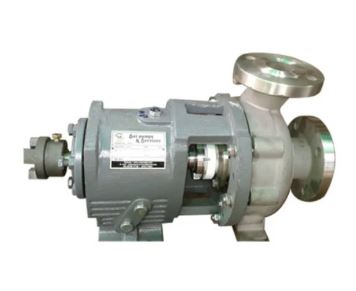

Investment Cast Centrifugal Pumps ANSI B 73.1 m:- All these pumps follow the ANSI pump dimension as well as the ASA 150 flange dimension with raised faces. The pumps are offered in various materials like Cast Iron, Cast Steel, SS304 (CF8), SS 316 (CF8M), SS316L (CF3M), Alloy20, Hastelloy - B&C, and CD4MCu etc.
CASTING
Chemical Process pump having top centerline discharge, self-venting casting, arranged for back pull-out. Fully confined gasket. Foot support under casing for maximum resistance to misalignment and distortion from pipe loads. ANSI-B-16.5 (Class 150) flanges standard, ANSI-B-16.5 (Class 300) optional for working pressure to 2550 kPa with 3 mm corrosion allowance. For Maximum Corrosion-erosion resistance casing is supplied without tapped openings but gauge and drain plug openings are provided when specified.
IMPELLER
Pump Impeller matched to casting for high efficiency and low NPSH. Fully open, has partial shrounds for maximum vane support without high thrust inherent in closed impellers. Stuffing box pressure reduced and entrance of solids prevented by back pump-out vanes. Large smoothly contoured flow passages combine best slurry and solid handling ability. Impeller is locked on shaft with impeller lock-nut and are sealed by Teflon (PTFE) gasket. State of the art casting methods
Ankleshwar - Gujarat
