S.P Machine Tools
Established in the year, 2007, at Batala, Punjab, India, we, “S. P. Machine Tools” are one of the leading organizations engaged in manufacturing, exporting and supplying a wide range of Industrial Machines. These machines are available with various standard accessories and consist of carrier plate, tool post spanner, MT - 4 centers with center bush, inch & mm change, gear set and many more. Our offered machines are appreciated by our customers for sturdy construction, longer service life and high resistance to corrosion. Due to the above mentioned qualitative features, these machines are used in Electrical, Steel, Chemical, Sugar, Aeronautical and Automobile industry.
We are a client centric organization and we are committed to offer our customers maximum satisfaction. We provide our customers the quality range of Industrial Machines. These machines are further tested by our quality analysts to make sure that these are free from all defects and perform flawlessly. We also have diligent team of members who work in close coordination to uphold the respect and pride of our organization.
Preview
Gali Shining Star,,G T Road, Batala, Gurdaspur,
Batala - 143505
Batala - 143505
Contact Details

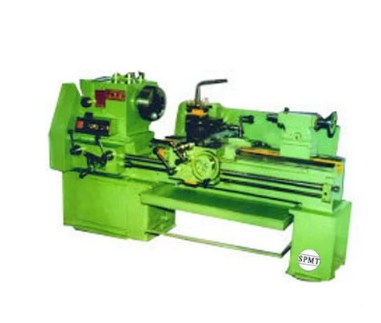

All Geared Type Lathe Machine
We use quality base material and high tech machines to produce high caliber all geared lathe machine. It is used for different operations such as sanding, drilling, cutting, etc. Applications of the product include wood turning, metal spinning, metalworking, and glass working.
Specifications:
Model no nl 6mm nl 8mm nl 10mm nl 12amm nl 12bmm nl 12cmm
Length of bed 6ft/1828mm 8ft/2438mm 10ft/3048mm 12ft/3657mm 12ft/3657mm 12ft/3657mm
Width of bed 14inch/350mm 16inch/400mm 18inch/450mm 20inch/500mm 22inch/550mm 24inch/600mm
Height of center 12inch/300mm 14inch/350mm 16inch/400mm 18inch/450mm 20inch/50mm 22inch/550mm
Swing over slide 17inch/430mm 21inch/533mm 25inch/635mm 29inch/736mm 31inch/787mm 34inch/863mm
Swing in gap 36inch/914mm 40inch/1016mm 44inch/1117mm 54inc/1370mm 56inch/1422mm 58inch/1473mm
Admit between centers 33inch/838mm 54inch/1371mm 78inch/1980mm 95inch/2413mm 95inc/2413mm 93inch/2363mm
Spindle hollow 2-1/8”/53mm 2-5/8”/63mm 3-5/8”/88mm 4-1/8”/103mm 4-1/8”/103mm 4-1/8”/103mm
Type of bed pedestals pedestals pedestals planner planner planner
Hp. Required 2*960 2*960 3*960 3*960 3*960 5*960
T. P. I. Of lead screw 4 2 2 2 2
