Rushabh Machine Tools
Established in the year 1989 at Mumbai, Maharashtra, we “Rushabh Machine Tools” are a Sole Proprietorship based firm, engaged as the foremost Wholesale Traders, Manufacturing and Import & Export of Drilling Machine, Lathe Machine, Air Compressor, Automatic Bandsaw Machine, Power Press Machine etc. We deal into wide range of workshop machinery and wood working machinery. Our products are high in demand due to their premium quality and affordable prices. Furthermore, we ensure to timely deliver these products to our clients, through this we have gained a huge clients base in the market.
Preview
Plot No. 89, Opposite Sandeep Industrial Estate, IB Patel Road,,Near Pooja Hotel, Goregaon East,,
Mumbai - 400063
Mumbai - 400063
Contact Details

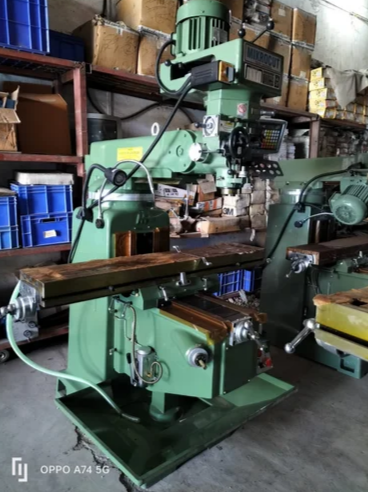

M1tr Milling Machine
Material Mild Steel
Product Type Milling machine
Automation Grade Semi-Automatic
Table Size 10 inch x 54 inch and 12 inch x 50 inch
Spindle Taper R8/ ISO30/ ISO40
Is It Customized Non Customized
I Deal In New and Second Hand
MODEL 2000S Table size(mm) 254x1270 (10”x50”) 254x1370 (10”x54”) 305x1370 (12”x54”) Longitudinal Travel (mm) 830 900 900 Cross Travel (mm) 400 400 400 Vertical Travel(mm) 3 numbers 406 406 406 Table T-slots(mm) 3 numbers 16x3x63 16x3x80 16x3x80 Spindle Motor (H.P.) 3 3 3 Spindle Speed (RPM) 16 Steps 50-4260 16 Steps 50-4260 16 Steps 50-4260 Spindle Taper R8 R8/ISO40 R8/ISO 30/ISO40 Spindle Nose to table Top (mm.) 40-446 40-446 40-446 Spindle Centre to Column Surface (mm). 200-680 200-680 200-680 Quill Travel (mm) 127 127 127 Auto Quill Feeds (per revolution)(mm) 0.40/0.08/0.15 0.40/0.08/0.15 0.40/0.08/0.15 Head Swivel (RL)90˚/(FB) 45˚ (RL)90˚/(FB) 45˚ (RL)90˚/(FB) 45˚ Ram Travel (mm) 480 480 480 Net Weight (kgs.) 1400 1450 1450 Y – Axis Dovetail guide way Dovetail Guide way Dovetail Guide way Z – Axis 55dg. Swallow tail Guideway 55dg. Swallow tail Guideway 55dg. Swallow tail Guideway
Mumbai - Maharashtra
