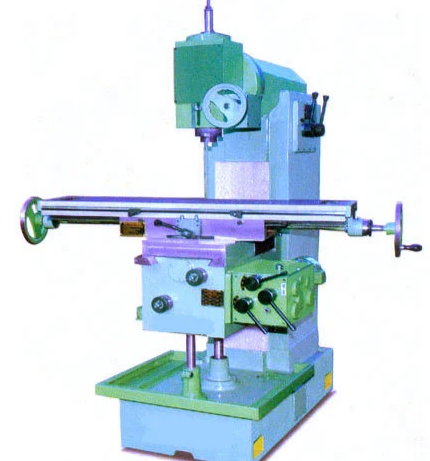

Vertical Milling Machine Gear Head
With an impressive growth record in this highly competitive industry, we are providing a qualitative range of Vertical Milling Machine Gear Head.
Specifications:
Model No 1 No 1 ½ No 2 No 3
Working Surface 1016 x 228 mm 1219 x 254 mm 1320 x 279 mm 1524 x 304 mm
No. of T-slots 3 3 3 3
Distance between T-slots 40 mm 45 mm 50 mm 60mm
Swivel forward backward 45 deg 45 deg 45 deg 45 deg
Longitudianl Feed power by hand 480 mm 550 mm 710 mm 218 mm
Cross Feed (power by hand) 150 mm 200 mm 225 mm 280 mm
Vertical Feed (power by hand) 355 mm 460 mm 530 mm 600 mm
Spindle Taper ISO 40 ISO 40 ISO 40 ISO 40
Lenght of arbor 380 mm 500 mm 650 mm 760 mm
Dia of milling arbor 25.4 mm 25.4 mm 25.4 mm 25.4 mm
No. of spindle speeds 6 6 9 9
Range of speeds 52-945 mm 52-840 mm 40-770 mm 40- 550 mm
Spindle motor 1.1 KW/2 HP 1.5 KW/2 HP 2.2 KW/3 HP 2.2 KW/3 HP
Feed gear box motor
1.5 KW/2 HP 1.5 KW/2 HP
Pump motor 0.075 KW 0.075 KW 0.075 KW 0.075 KW
Net Weight 1000 kt 1200 kt 1800 kg 260
