Royal Engg. Works
Incorporated in the year 2005, we “Royal Engg. Works (Regd.)” are counted as the reputed manufacturer of Power Press Machine, Milling Machine, and Hydraulic Power Press Machine etc. Located in Ludhiana (Punjab, India), we are a Sole Proprietorship firm engaged in offering a high-quality range of products. Under the management of, “Mr. Vikas Shori” (Marketing Head), we have been able to provide complete satisfaction to our clients.
Our patrons are our assets and fulfilling their requirements is our primary concern. Our exceptional product range is the result of our efforts to give the best of our endeavors to our consumers. Our products are well-scrutinized in accordance with the given quality parameters. Each product is tested for optimal quality, high material strength, and operational effectiveness. The products are comprehensively admired by clients for having long working life and giving an efficient performance.
Preview
2658 ST.NO.1 , DHURI LINE,Vishwakarma Town, Jammu Colony,,
Ludhiana - 141003
Ludhiana - 141003
Contact Details

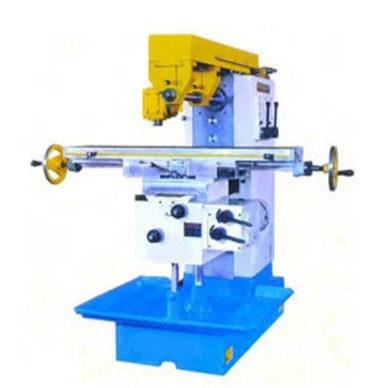

Universal Milling Machine One Feed Auto Machine
Being a prominent firm in this domain, we are engaged in offering a distinguished assortment of Universal Milling Machine One Feed Auto Machine, which conforms to the set industry standards. Our range is used for mixing and grinding all kinds of solid and liquid substance. These machines have long working life and cater to the needs of several industries.
Specifications:
Model
No 1 No 1 ½ No 2 No 3
Working Surface 1016 x 228 mm 1219 x 254 mm 1320 x 279 mm 1524 x 304 mm
No. of T-slots 3 3 3 3
Distance between T-slots 40 mm 45 mm 50 mm 60mm
Swivel forward & backward 45 deg 45 deg 45 deg 45 deg
Longitudianl Feed power & by hand 480 mm 550 mm 710 mm 218 mm
Cross Feed (power & by hand) 150 mm 200 mm 225 mm 280 mm
Vertical Feed (power & by hand) 355 mm 460 mm 530 mm 600 mm
Spindle Taper ISO 40 ISO 40 ISO 40 ISO 40
Lenght of arbor 380 mm 500 mm 650 mm 760 mm
Dia of milling arbor 25.4 mm 25.4 mm 25.4 mm 25.4 mm
No. of spindle speeds 6 6 9 9
Range of speeds 52-945 mm 52-840 mm 40-770 mm 40- 550 mm
Spindle motor 1.1 KW/2 HP 1.5 KW/2 HP 2.2 KW/3 HP 2.2 KW/3 HP
Feed gear box motor
1.5 KW/2 HP 1.5 KW/2 HP
Pump motor 0.075 KW 0.075 KW 0.075 KW 0.075 KW
Net Weight 1000 kt 1200 kt 1800 kg 2600 kg.
Ludhiana - Punjab
