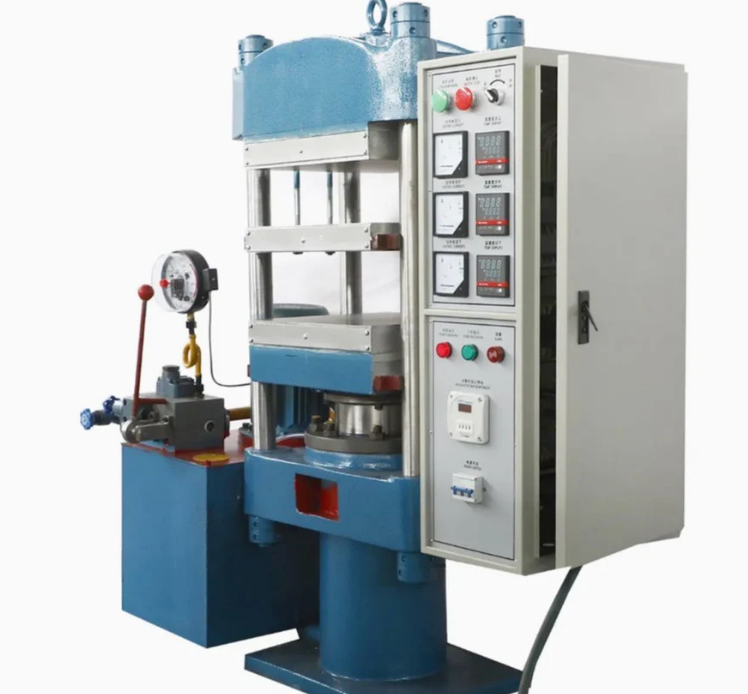

150 Ton Hydraulic rubber compression moulding machine

Capacity 500 tons Machine Type 4-Pillar Type No. of Station Single Platen Size 500*500 mm Daylight Gap 18 Inch No. of Daylight One Heating of Platens Electrical Heater Stroke Length 18 Inch Bore Diameter 12 Inch Motor Power 7.5 HP Working Pressure 210 Bar Weight 8 Ton Condition New Quick Return Speed 120 Pull Back Force 100 Slow Opening Speed 20 Country of Origin Made in India Full Automatic pull and push systerm plate rubber Press Machine The machine is the pillar type structure, mainly by the host, hydraulic pressure station, electric control into. Host a next base, plunger, activity platform, beam in, automatic push mould device, forced open mold device etc parts. The beams, activity platform and the hot plate respectively between equipped with high quality insulation board, prevent the hot plate heat transfer to activities platform, cause of working liquid temperature increases. The machine can automatically forced open mold, automatic launch mould, and other functions, in PC control can be done automatically shut the mould, vulcanization timing and exhaust in time and frequency setting, mould opening, pushing mould and so on work cycle, and set the manual control condition, is rubber vulcanization products advanced and reliable automation equipment.
