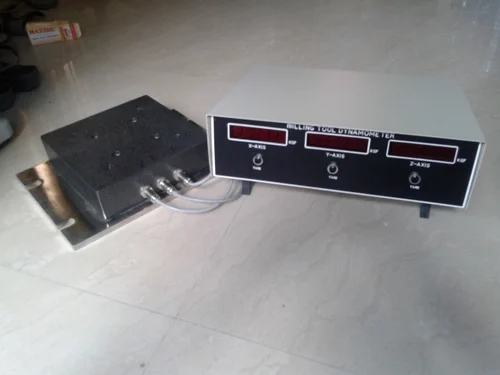

Milling Tool Dynamometer
Model Name/Number RMS-MT
Usage/Application Industrial
Accuracy 0.05% Full scale
Usage Laboratory
Capacity 100 - 1000 Kg available
Voltage Standard
Phase 230vac
The RMS milling tool dynamometer can be mounted on the table of the milling machine and any component to be milled can be fixed over the dynamometer. Slots are provided to mount the dynamometer to the milling machine. Holes have been provided on the milling dynamometer to enable any type of component to be fixed on it. Theoutput terminals are provided for the force in XYZ direction acting on the working piece. It is also available data logger with computer Interface software and systems.
Specification:
• Force : X Y Z direction
• Range of force : 100kg in XYZ direction - 200kg in XYZ direction - 500kg in XYZ direction.
• Sensor : 4 arm bounded strain gauge component bridge for each force.
• Bridge resistance : 350 Ohms typical
• Bridge voltage : 12 volts Maximum
• Linearity : 0.1% of full scale
• Accuracy : 0.1% of full scale
• Mounting : using slots provided
• Additional Facility : vice 4” size to hold the specimen optional
• Optional : Data Logger with Lab View based Computer Interface software, online Graph for 3Axis, value stored in Excel, print graph.
