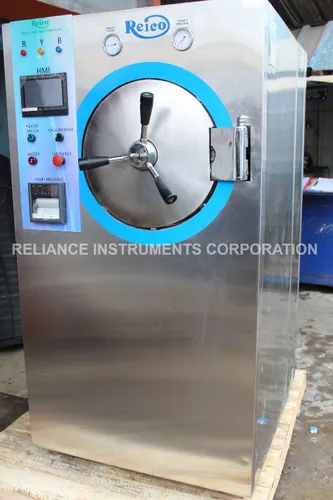

Horizontal Cylindrical Autoclave
Usage/Application Industrial
Capacity 75 - 1200 LITRES
Temperature Range 121 -134 Degree Celsius
Pressure Range (psi) 17-33
Chamber Volume (Litre) > 75 Litres
Insulation Wall Triple Wall
Shape Horizontal
Material Stainless Steel
Mount Type Floor Mounted Autoclave
Power Consumption 6 - 18 KW
Warranty 1 Year
Brand Reico
No. of Trays 2 Tray, 3 Tray
Phase Three Phase
Voltage 440 V
Inner Chamber SS 316
Gasket Silicon Expansion type
Steam Jacket Material SS 304
Product Details:
Door: Single door with Radial locking system
Mode of control: With a multiport valve / Automatic Optional
Door: SS Door Wing Nut/ Radial Locking
Pre-vacuum and post vacuum: To eliminate air packs and ensure effective sterilization.
Water protection: In the event of low water the supply to the heaters is discontinued automatically and visually indicated in the control panel.
Pressure switch: An automatic pressure switch adjustable type is provided to set the required pressure.
Vacuum drying: An effective vacuum drying is caused with powerful ejector and vacuum breaker which draws air from the atmosphere. It is filtered, pre-heated(sterilized) and finally enters the working chamber for effective drying.
Water Gauge glass: To note down the level of water glass tube with gauge is provided.
Gasket: Silicon Expansion type
