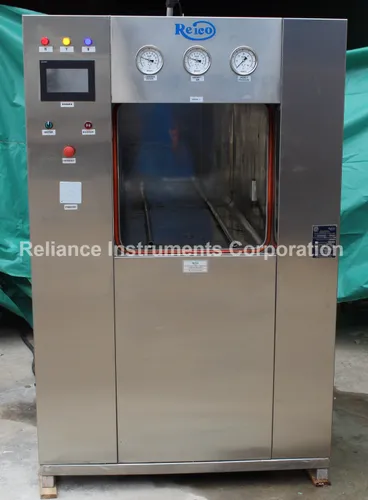

Formaldehyde Sterilizer

Chamber Volume 600 Application Hospital Type Of Sterilizer Formaldehyde Sterilizer Material Stainless Steel Shape Rectangular Chamber Dimension 600 X 900 X 1500 Insulation Wall Triple Wall Temperature Range 50 -134 Deg Pressure Range 1- 30 PSI Approval Certificate CE Certificate Chamber Capacity : 225 - 1000 Liters Door : Vertical Sliding / Radial Locking Double Door with Pneumatic Operation Door Safeties : Cycle will not start until the door is shut properly, Door automatically stops if an obstruction is detected, Door cannot be opened when the chamber is pressurized, Prevents both doors from being opened simultaneously. Inner Chamber, Door, Steam Generator and Jacket : SS 316 L Insulation for Jacket and Doors : 60 mm Chloride free mineral wool. Pipes and Valves: Piping system made up of SS304 with Pneumatic Operated Piston type valve Steam Generator : Inbuilt Steam Generator made up of SS 316L, 50 mm Chloride free mineral wool, Safety Valve, Heating capacity of 45Kw. Vacuum Pump: High capacity efficient liquid ring type vacuum pump with Condenser for pre and Post Vacuum Pulsing Automatic Water Pump : High Pressure Feed water Pump for Automatic Water Filling. Operating Interface : Dual PLC control Based Fully Automatic HMI 7” Touchscreen on Both Loading and Unloading Side with COM ports for printer & PC communications, Password Protected, Data Logging facility, Different setting of cycles which are pre selectable and Editable as per User requirement, HMI displays Chamber Temperature, Pressure, Time, Date, Cycle No, Batch No, alert message with Audio visual alarm for Chamber and Steam Generator High Pressure and Temperature, Low Water level in Generator, Vacuum pump and Water pump error, Temperature and Pressure sensor failure.
