Established in the Year 2011 At Bengalure Karnataka We Rashi Associates is one of the renowned Manufacturer of a wide range of Scrap Wire Stripping Machines, Recycling Machines, Wiring Harness machines such as Automatic Wire Cutting and Stripping Machine, Sleeve Cutting Machines and much more.
We have created a niche for ourselves in the market and successfully established beneficial business ties with the most reputed vendors and clients in the industry.
Preview
29, 2nd Cross, 1st Main Road,Ashwath Nagar,,
Bengaluru - 560086
Bengaluru - 560086
Contact Details

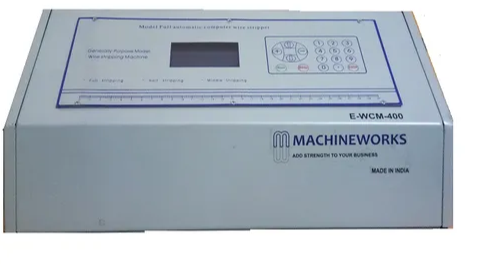

Wire Cutting And Stripping Machine
Capacity 4000 Pcs/Hr
Power Source Electric
Wire Types PVC, Teflon, Glass Wire
Stripping Material Double Blade
Frequency 60 Hz
Voltage 230 V
Maximum Diameter of Conduit Pipe 10 mm
Brand Machine Works
Stripping Length Head 0 -35mm,Tail 0-15mm
Cutting Cross-Sectional Area of Wire Core 0.25-4sq.mm
Mode of Driving Stepper Motor
Wire Cutting Length 1mm - 9999mm
Material of Blade High carbon High chrome Steel
Storage Programmes 0-99 (100 Programmer)
Cutting Tolerance +/-(0.002xL) (L=Cutting Length)
Technical Data:
Mechanical system: High Precision Mechanical system with Less maintenance.
Feeding system: Two stepping motors with 4 feed rollers
