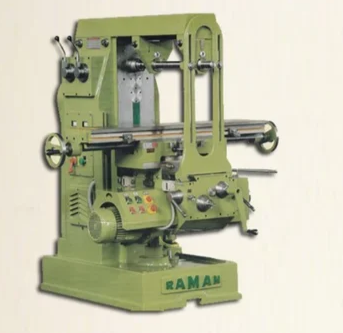

R-2M (AU)G Geared Head Milling Machine
Weight of the Machine 2200 Kg. (Packed)
Cross Manual Only 9 Inches, 229mm
Color Green
Table Inches MM
Table Area 48 × 11 1220 × 280
No. of T Slots 3 × 5/6 3 ×15
Distance Between T Slots 2 50
Swivels forward & back 45 °
Range
Longitudinal Manual/automatic 26 660
Cross Manual only 9 229
Vertical Manual only 16 406
Head
Taper in Spindlenose ISO 40
Dia of Spindlenose/at rear bearing 3 1/2,13/4 80,44
Size of hole through Spindle 7/8 22
Length ofArbor 25 635
Dia of Milling Arbor 1 25.4
Range of 9 Speeds 60-830 RPM
Overarm
Length of Overarm 46 1168
Width of bearing surface of ways 2 50
Max. Swing of tool dia 11 279
Work Range
Centre of spindle to top of table 0-16 0-406
