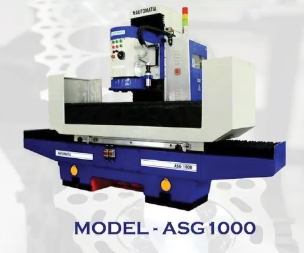

Automatia ASG 1000 Vertical Surface Grinding Machine
Brand Automatia
Model ASG - 1000
Maximum Grinding Width 350 mm
Table Clamping Surface 1000 x 300 mm
Automatic Table Travel 1200 mm
Maximum Grinding Length 1000 mm
Table Feed Rate Variable (Servo With Ball Screw)
Grinding Wheel Motor Power 3 hp,980 rpm 3 Ph,415 V,50 Hz
Grinding Head Spindle Speeds 250,550,1000 rpm
Shipping Volume 11 m3 (Approx)
Maximum Milling Width 370 mm
Segment Wheel Dia 350 mm
Max Distance Between Table Wheel Head 500 mm
Grinding Head Rapid Movement Variable (MPG) (Servo with Ball Screw)
Coolant Motor Power 0.25 h.p
Gross Weight 2700 kg (Approx)
Packing Case Dimensions 3000 x 1666 x 2000 mm (LxWxH)
Hand Feed for Grinding Head 1 div/0.01 mm MPG
Table Movement Precision Ball Screw
Vertical Head Traverse 550 mm
Servo Motor Table Traverse 400 W
Distance From Column to Table Center 350 mm
