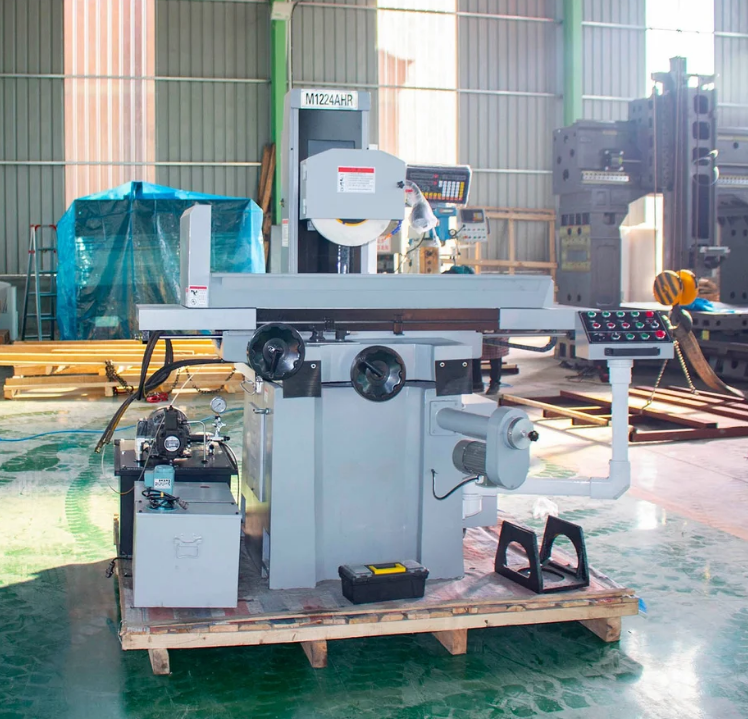

Hydraulic Surface Grinder MY1224
Hydraulic Surface Grinder MY1224
HSN Code: 84596190
Product Code: Hydraulic Surface Grinder MY1224
Units MY1224
Worktable size (L * W) mm 600×300
Max. travel of table mm 630×320
Table T slot (slot number x slot width) mm 1×14
The grinding wheel size (o. d * w * i. d.) mm ?300×30×?76.2
Distance spindle center line to working table mm 520
Grinding wheel speed 50HZ r/min 1450
60HZ r/min 1680
Table longitudinal (left and right) speed m/min 3-20
Table transverse (front and rear) feed handwheel feed Continuous (stepless) mm/min 600
Intermittent (stepless) mm/times 0-6
Handwheel per turn mm 4
Handwheel per lattice mm 0.02
The vertical (up and down) feed handwheel feed Handwheel per turn mm 2
Handwheel per lattice mm 0.01
Hydraulic motor kw 2.2
working pressure Mpa 2.2
Fuel tank capacity L 4
Maximum flow rate L/min 100
Spindle motor kw 20
Cooling motor W 2.2
The process surface of the base level of the parallel degree mm 40
Surface roughness ?m 120
Net weight kg 1400
Gross weight kg 1530
