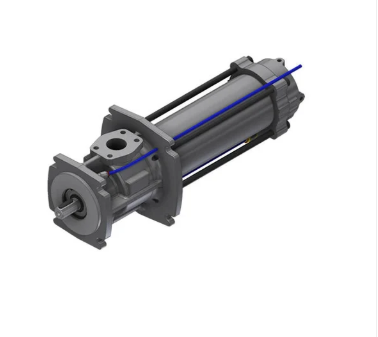

Coolant Oil Pumps & Water Oil Emulsion High Pressure Pumps 175 Lpm, Pressure up to 120 bar
Pump Type: Triple Screw Pumps
Pump Model: TO – 07 ASF
Pump Brand / Manufacturer: SEIM Pumps (Italy) PWO Series
Pump Mounting: Horizontal & Flange Mounted
Type of Drive: Direct
Relief Valve: Not – Included, Use Line Mounted Relief Valve
Bearing Location: External
Bearing Type: Ball Bearing
Bearing Lubrication: Grease
Suction Size & Rating: 1 1/2’’ BSP Female Threaded Port
Discharge Size & Rating: NB 1 1/2’’ SAE, 3000#
Pump Port Location: Axial / Top (Looking From Shaft End, Axial IN & Top OUT)
Shaft Sealing Type: Mechanical Seal X 1
Direction of Rotation: CW from Shaft End
Connections: Gauge
Jacketing Type, Media & Parts: Not Available
Non-Reversible / Uni Rotation Flow Pumps
Material of Construction
Pump Casing: Cast Iron
Covers: Cast Iron
Screw Rotor Sets: Alloy Steel
Sealing Kit: Nitrile Elastomers + Non Asbestos Compressed Fiber Gasket + C vs SiC
Other Parts: In Cast Iron / Mild Steel
We recommend using a suction / vacuum gauge at the inlet of the pump & gauge should not show less than the NPSH(A) value even though the suction condition is flooded.
The cross section of the suction line should be such that fluid velocity nowhere exceeds 1 m/sec in the suction line and 3 m/sec in the discharge line.
The pumps must be protected against solid particles (dirt) in the fluid by using suitable suction filters. The mesh width maximum should be 0.1 mm (For Oil upto 500 cSt) and care must be taken that even with a contaminated filter the admissible suction lift capability is not exceeded. For other viscosity, please consult filtration department.
Available Standard Documents (On Request):
1. General Instruction Manual
2. Standard Warranty Terms and Conditions
3. General Pump Arrangement Drawing
4. General Cross Section Drawing
5. Test Certificate
6. List of Recommended Spares
7. Standard Pump Performance Curve
8. Predicted Pump Performance Curve
9. Assembly & Disassembly Procedure & Videos
10. Installation Checklist
11. Commissioning Spares
