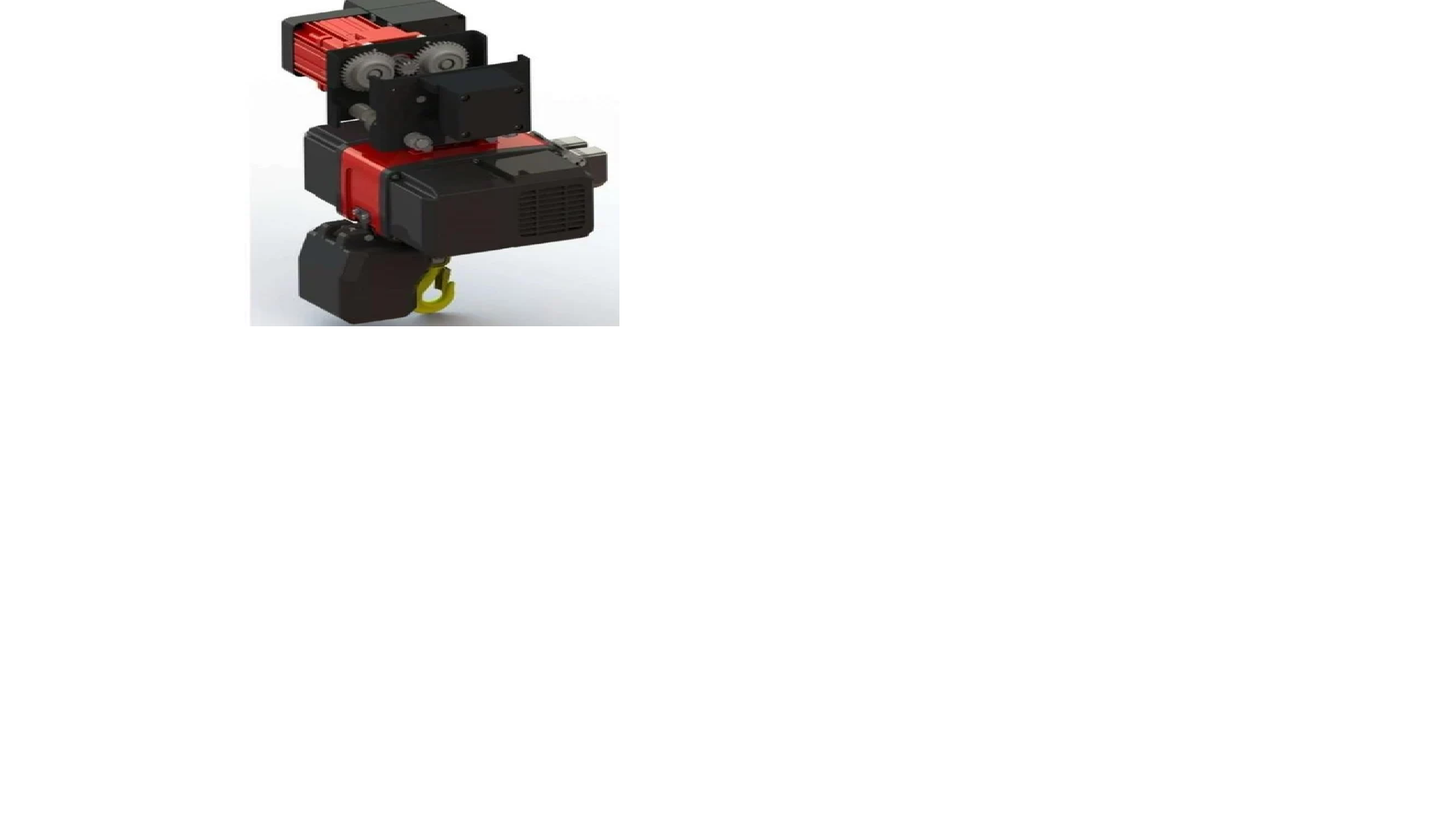

Carl Stahl Electric Chain Hoist

Control Voltage 48V-Contactor,24V-Inverter Phase 3 Phase Brand CarlStahl Frequency 50Hz Operating Temperature -10 Degree C to +50 Degree C Mounting Hook,Lug or Trolley Lift Height 3-12m Duty Cycle Single Speed - 60% ED,Dual Speed - 40/20% ED Hoist Rating IP55 Capacity Range 250 Kg To 4000 Kg Pendant Rating IP65 Power Source Electric Description:- Optimal Space Utilization:- Compact dimensions and best hook approach. 20% Higher Speed Variable Frequency Drive:- Adjustable spped, soft start minimizes the oscillation of loads, increased life of gear train, chain, hook and break components. Brake:- Brake is placed afetr the slipping clutch enable the brake the hold the load without any power transmitted by the clutch. Slipping Clutch:- Reliable protection against overloading, highest safety with brake positioned after the sli[p clutch, easily adjustable. Steel Casted Intergated Chain Guide:- Provides quiet and smooth guiding of chain, good accessibility of wearing parts. High Safety In Operation:- High temperature protection by thermistore, IP55 for dust and moisture protection, limit switches for upper and lower limit, emergency stop button, 48V control supply, drop stops. Chain:- Surface hardened, galvanized chain class DAT(G80) norm EN 818-7 ensures minimum wear and longer life. Applications:- Motor Brake Transmission Slipping Clutch Chain Wheel Chain Unique Chain Guide Forged Carbon Steel Hooks Rotary Limit Switch Frame Assembly Price Range: 41234-165000Rs Per Unit
