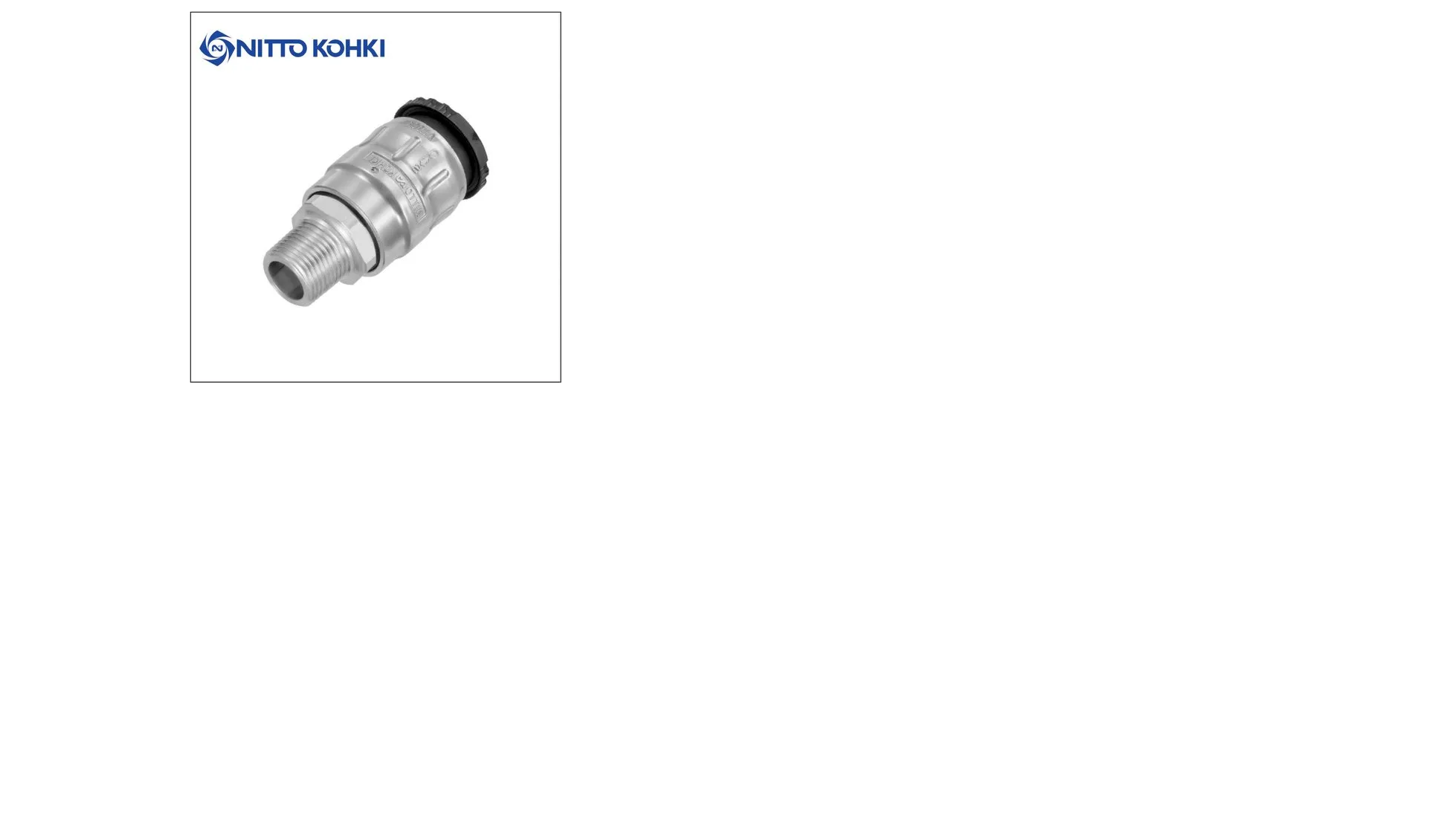

Full Blow Cupla

Usage/Application Pneumatic Connections Material Aluminium Alloy Brand Nitto Kohki Use For Low Pressure (Air) Working Pressure 1.5 MPa,1.5 kgf/cm2,1.5 bar,218 PSI Thread and Hose Barb 1/4'',3/8'',1/2'' Features: Unique full-open gate type valve mechanism realizes low pressure loss and high flow rate, which reduces required source air volume. The flow rate is increased by up to 40% more then that of conventional Cuplas.. During connection and disconnection the valve is closed, enabling connection/disconnection under zero line pressure. When the sleeve of socket is returned to its original position, the purge mechanism releases the residual air pressure in the plug, eliminating an unpleasant popping noise and a hose whip back motion on disconnection. Built-in sleeve lock mechanism prevents accidental disconnection of cuplas, ensuring safe operation. The valve can be opened and closed while the socket and plug are connected. The weight is reduced by 30 to 45 % compared with that of conventional cuplas.
